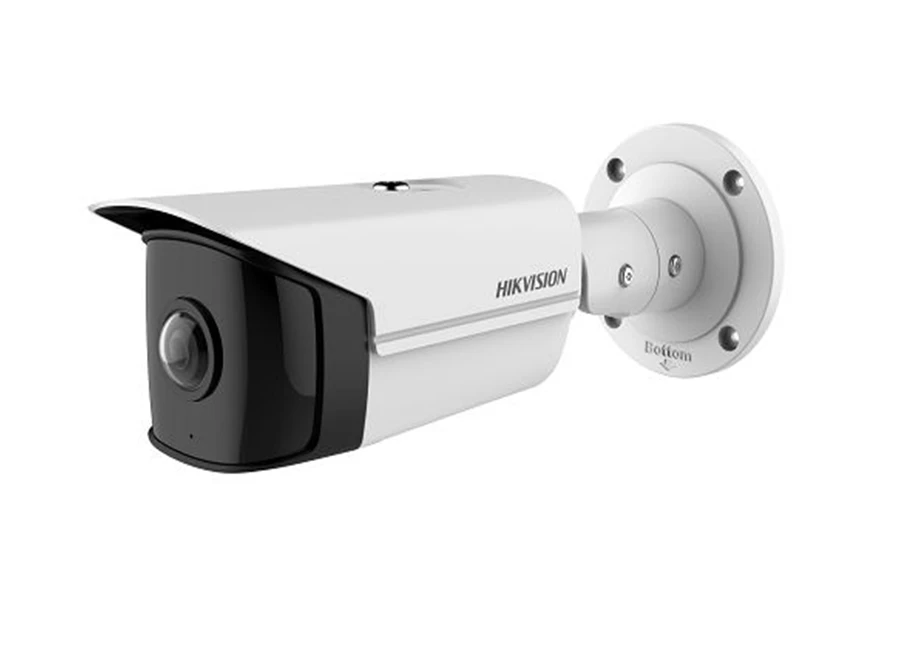

Hikvision DS 2CD2T45G0P I IR IP Bullet Kamera

Özellikler

1/2.7" Progressive Scan CMOS
2688 × 1520 @ 25fps
1.68 mm ultra wide angle fixed lens
120dB WDR
H.265, H.265+, H.264, H.264+
Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
IP67

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100,000 s
Lens	Horizontal: 180°, vertical: 101°, diagonal: 180°
Lens Mount	M12
Ayarlanan Aralık	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Fixed
Compression Standard
H.264 Türü	Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	2688 × 1520
Ana Akış	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Üçüncül Akış
Görüntü İyileştirme	BLC/3D DNR/ROI/HLC
Image Settings	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Reset Butonu	Yes
Smart Feature-set
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25% PoE (802.3at, class 4)
GÜç Tüketimi	12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W
IR Range	Up to 20m
Boyutlar	Camera: Φ105 × 278 mm (Φ4.1″ × 10.9″)
Boyutlar	With package: 386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″)
Ağırlık	Camera: 570 g (1.26 lb.)
Ağırlık	With package: 760 g (1.68 lb.)
