Açıklama

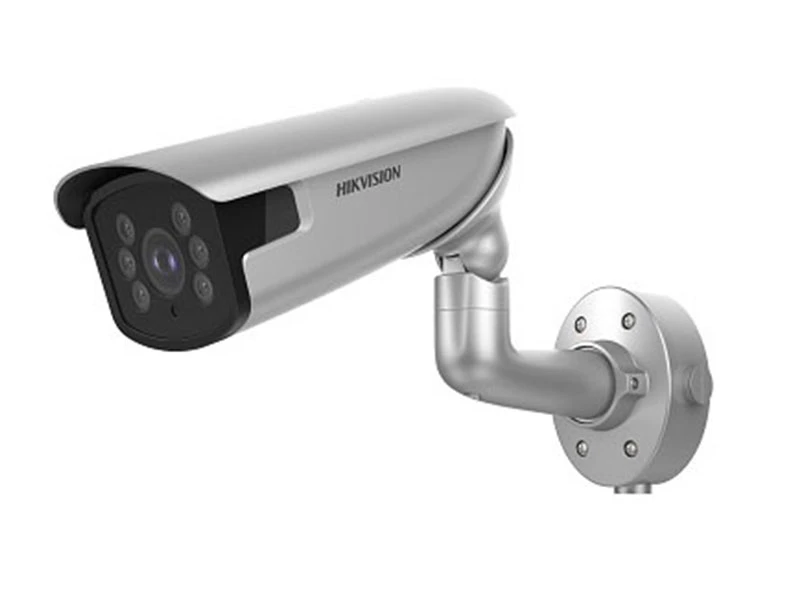

Hikvision iDS 2CD8626G0/P IZS LZS IP Bullet Kamera
Özellikler
- 1/1.8" progressive scan CMOS
- Full HD1080p video, up to 60fps
- 2.8 to 12 mm and 8 to 32 mm motor-driven lens optional
- 140dB WDR
- Auto-iris, DC drive
- Color: 0.002 Lux @(F1.2, ADC On)
- H.265, H.265+. H.264, H.264+
- IR range: up to 100 m (-IZS)
- White light range up to 30m(-LZS)
- 3D DNR/Defog/EIS/HLC/BLC
- IP67, IK10
- License plate recognition
- Support vehicle speed under 120km/h (74.6mi/h)
- Up to 10000 whitelist and blacklist
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON); 0.031 Lux @ (F1.5, AGC ON), 0 Lux with IR or white light on |
| Shutter time | 1 s to 1/100,000 s |
| Slow shutter | Yes |
| Lens | 2.8 to 12 mm and 8 to 32 mm, Optional |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Baseline Profile/Main Profile/High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480) |
| 60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| BLC | Support |
| HLC | Support |
| Smart Defog | Support |
| EIS | Support |
| 3D DNR | Support |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, |
| SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| System Compatibility | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Intelligent | |
| Behavior analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface |
| Audio | 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
| Alarm | 2 inputs, 2 outputs (up to 24 VDC 1 A or 110 VAC 500 mA) |
| Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection, defocus detection |
| General | |
| IR Range | 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m |
| Operation Condition | -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Consumption | -IZS: 36 VDC, 1 A, max. 35 W |
| -LZS: 36 VDC, 1.17 A, max. 42 W | |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| Dimensions | Camera: 560 × 339 × 160 mm (22.0" × 13.3" × 6.3") |
| Weight | Camera: approx. 6 kg (13.2 lb.) |
| With Package: approx. 8 kg (17.6 lb.) | |
Hikvision iDS 2CD8626G0 P IZS LZS IP Bullet Kamera Pdf Dosyası859.84 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
