Açıklama

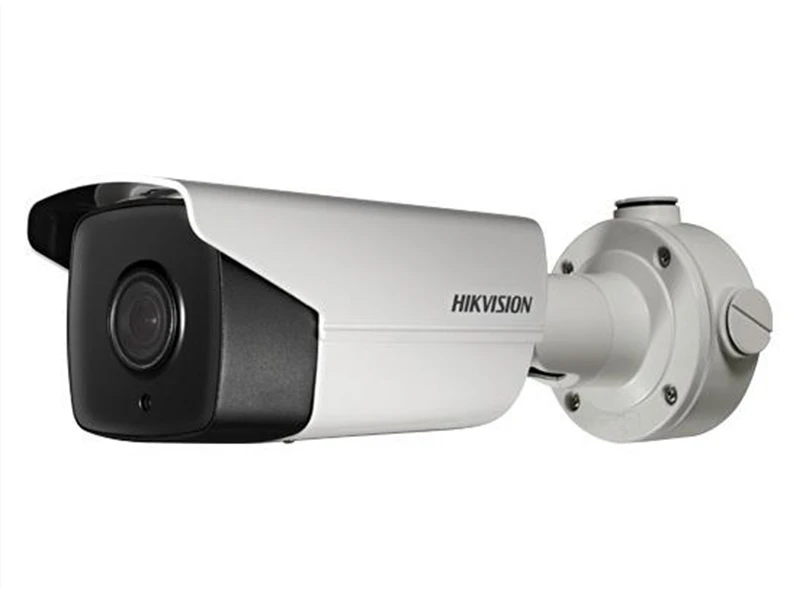

Hikvision DS 2CD4B36FWD IZ IP Bullet Kamera

Özellikler

1/2.8” Progressive Scan CMOS
Auto-iris
2048 × 1536 @ 30fps
Low light
H.265, H.265+
120dB WDR
IP67
6 behavior analyses, 1 exception detection, and face detection

Teknik Özellikler

Camera
Image Sensor	1/2.8” CMOS progressive scan CMOS
Minimum Aydınlatma	Color: 0.005 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR
Minimum Aydınlatma	B/W: 0.0005 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F1.4, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1 s to 1/100,000 s
Lens	2.8 to 12 mm F1.4, horizontal angle of view 88.5° to 32.8°
Lens Kurulumu	φ14
Auto Iris	DC drive
Ayarlanan Aralık	Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Geniş Dinamik Aralık	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video Bit Hızı	32Kbps~16Mbps
Ses Bit Hızı	Baseline Profile/Main Profile/High Profile
Üçüncü Akım	Yes
Max. Image Resolution	2048×1536
Ana Akış	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Ana Akış	60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Çerçeve Hızı	50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Üçüncül Akış	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Üçüncül Akış	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Görüntü İyileştirme	BLC/3D DNR/Defog/EIS/HLC
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Bölgesel Kırpm	Support
ROI	Support 4 fixed region for each stream, and dynamic face tracking
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Auto/Schedule/Triggered by Alarm In (-S)
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video
General Function	mask, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
İletişim Arayüzü	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S)
Alarm	With –S model: 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Audio I/O	Support dual audio track, stereo
Audio Sampling Rate	16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
General
Çalışma Sıcaklığı	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Çalışma Sıcaklığı	Humidity 95% or less (non-condensing)
GÜç Tüketimi	12 VDC ± 20%: Max. 11.25 W/0.94 A
GÜç Tüketimi	PoE (802.3at): Max. 15 W/0.31 A
Weather Proof	IP67
IR Aralık	Approx. 10 to 30 meters
Boyutlar	348.38 × 114.18 × 111.73 mm (13.72″ × 4.5″ × 4.4″)
Ağırlık	Camera: 1900 g (4.19 lb.)
Ağırlık	With package: 2100 g (4.63 lb.)
