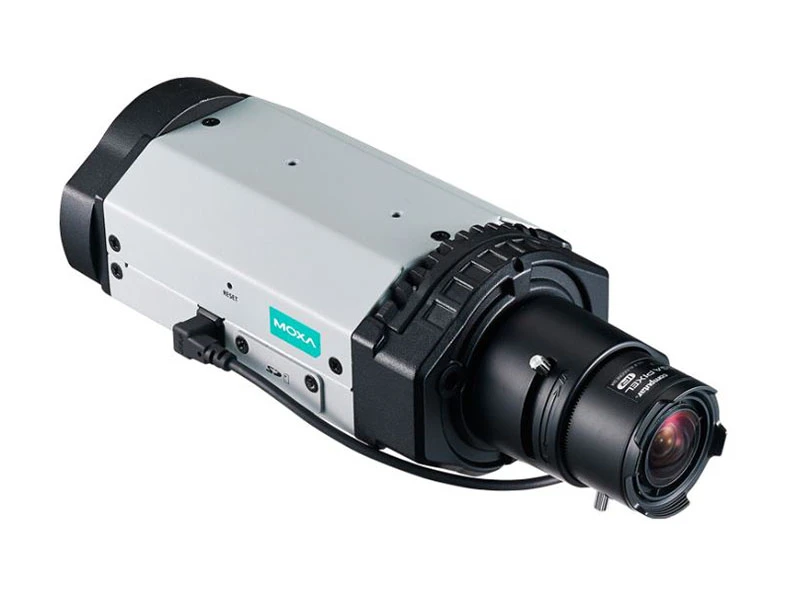

Moxa VP 3113MPIR IP HD Box Kamera

Özellikler

Industrial design with -40 to 75°C operating temperature (heater or cooling fan not required)
1/2.7” progressive scan CMOS camera with HD resolution (max. 1280 x 720)
DNR, WDR for superb image quality
Triple video streams with H.264 and MJPEG
Compatible with C/CS-mount lenses with built-in ICR support
EN 50121-4 and NEMA TS2 compliant
DynaStream™ support for maximum network efficiency
Local storage capability with SD card slot

Teknik Özellikler

Camera
Sensor	1/2.7” HD progressive scan CMOS
Lens	Designed for C/CS-mount lens (lens not included)
Illumination (low light sensitvity)	• Color: 0.2 lux at F1.2
Illumination (low light sensitvity)	• B/W: 0.05 lux at F1.2
Day & Night	Auto/Color/BW; ICR Control
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
Dynamic Range	• Color: 100 dB
Dynamic Range	• B/W: 110 dB
S/N Ratio	50 dB (AGC OFF; DNR ON)
ICR Control	Auto (light sensor control) or DI control
DNR	Built-in DNR (digital noise reduction)
WDR	Levels 1-8
	• color: 100 dB
	• B/W: 110 dB
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
IRIS	Auto, DC drive
Flickerless Control	Indoor/Outdoor mode
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High/Medium/Low
Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3, H.264, or MJPEG independent video streams
Video Viewing	• DynaStream™ support for changing the video frame rate automatically
	• 3 privacy mask areas provided
	• Adjustable image size and quality
	• Timestamp and text overlay
	• Maximum of 5 simultaneous unicast connections, 50 multicast clients
	• CB
Network
Protocols	TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS
Ethernet	1 10/100BaseT(X) Ethernet port, RJ45 connector
Serial Port
PTZ Ports	1, RS-485, terminal block connector
Local Storage
SD Socket	Standard SD socket (SDHC)
GPIO
Digital Inputs	1, max. 8 mAHigh: +13 to +30 V; Low: -30 to +3 V
Relay Outputs	1, max. 24 VDC @ 1 A
LED Indicators
STAT	Indicates if the system is booted properly or not
Network	10 Mbps or 100 Mbps
Power	Power on/off
Power Requirements
Input Voltage	24 VDC (12 to 24 VDC) / 24 VAC, and PoE (802.3af) redundant power design
Input Current	12 to 24 VDC, 0.8 A or 24 VAC, 7.5 W or 48 VDC (PoE), 0.135 A
Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	81.76 x 69.65 x 147.6 mm (3.22 x 2.74 x 5.81 in)
Weight	770 g (1.69 lb)
Installation	Wall mounting, pole mounting, corner mounting
Installation	Note: Optional external housing and mounting accessories may be required.
Alarms
Intelligent Video	VPort 36-1MP: Camera tamper
	VPort 36-1MP-IVA: Camera tamper, detection line/zone, missing object, abandoned object
	Note: IVA functions are optional except for camera tamper.
Video Motion Detection	3 independently configurable areas; includes sensitivity tuning
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Video Recording	Event recordings stored on the SD card
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	24 MB video buffer for JPEG snapshot images
Security
Password	User level password protection
Filtering	By IP address
Authentication	802.1X
Encryption	HTTPS, SSH
Environmental Limits
Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F)
Operating Temperature	Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, 2 to 13.2 Hz: 2 mm (peak-peak); 13.2 to 100 Hz: 0.7g;
	1.50 hrs/axis
	IEC 60068-2-6, 3 to 9 Hz: 7 mm (peak-peak); 9 to 150 Hz: 1.0g;
	1.86 hrs/axis
Shock	IEC 60068-2-27, 20g/11ms
Altitude	2000 m
Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN50121-4
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nCnAnL IIC T4
Hazardous Location	Note: The VP-3113MPIR lens is Class I Div. 2 and ATEX Zone 2 certified.
Transportation	NEMA TS2
Transportation	Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time	541,826 hours
Standard	Telcordia SR332
