Açıklama

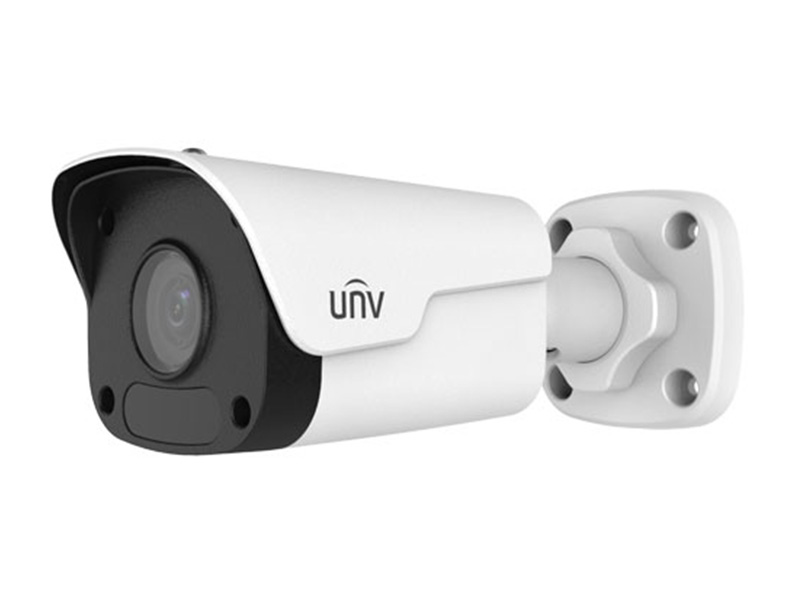

Uniview IPC2124LR3 PF40M D IP Mini Bullet Kamera

Name: Uniview IPC2124LR3 PF40M D IP Mini Bullet Kamera
Brand: Uniview

Optics

Compression

Network

Structure

Depolama : Var

Çözünürlük : 4MP

	IPC2124LR3-PF40M-D				IPC2124LR3-PF60M-D
Camera
Sensor	1/3", 4.0 megapixel,progressive scan, CMOS
Lens	4.0mm@F2.0				6.0mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)	Identify(m)
	4.0mm	60		24.1		12.1	6.1
	6.0mm	90		5.2		18.1	9.1
Angle of View (H)	78.9°				49.9°
Angle of View (V)	39.6°				27.0°
Angle of View (O)	97.0°				57.7°
Adjustment angle	Pan: °~360°		Tilt: °~90°			Rotate: 0°~360°
Shutter	Auto/Manual,1~1/100000 s
Minimum Illumination	Colour: 0.03 Lux(F2.0, AGC ON)
	0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with autoswitch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264,MJPEG
H.264 code profile	Baseline profile,Main Profile,High Profile
Frame Rate	Main Stream:4MP(2592*1520):Max. 20 fps;
	Sub Stream:720P(1280*720):Max. 30 fps;
	Third Stream:D1(720×576):Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
Compatible Integration	ONVIF(Profile S), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%,PoE(IEEE802.3 af)
	Powerconsumption: Max 4W
Dimensions (L × W × H)	167.3 × 62.9 ×62.7 mm(6.6” × 2.5” × 2.5”)
Weight	0.37kg (0.81lb)
Working Environment	-30°C ~ +60°C(-22°F ~ 140°F),Humidity :10%~90%RH(non-condensing)
Ingress Protection	IP67
