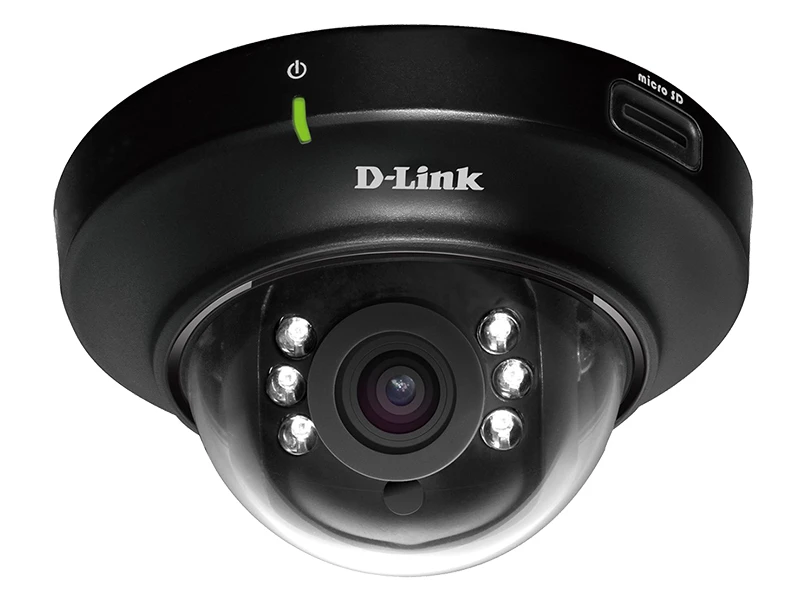

D-Link DCS 6004L A1A IP HD Dome Kamera
Teknik Özellikler
| Genel Özellikler: |
| Camera Hardware Profile |
| 1/4” 1 megapixel progressive CMOS sensor |
| 5 meter IR illumination distance |
| Minimum illumination: 0 lux (with IR LED on) |
| Built-in microphone and audio out |
| 10x digital zoom |
| Fixed length: 2.8 mm |
| Aperture: F1.8 |
| Angle of view: |
| (H) 75.2° |
| (V) 48.2° |
| (D) 89.3° |
| Minimum object distance: 500 mm |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable privacy masks zones |
| Configurable brightness, saturation, contrast, and sharpness |
| Configurable motion detection windows |
| Video Compression |
| Simultaneous H.264/MPEG-4/MJPEG format compression |
| H.264/MPEG-4 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 up to 30 fps recording* |
| 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 up to 30 fps recording* |
| Audio Support |
| G.711: 64 kbps |
| AAC: 64 kbps |
| External Device Interfaces |
| 10/100 BASE-TX Fast Ethernet port with 802.3af PoE support |
| microSD/SDHC card slot** |
| Network Protocols |
| IPv6 |
| IPv4 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| HTTP / HTTPS |
| Samba client |
| PPPoE |
| UPnP port forwarding |
| RTP / RTSP/ RTCP |
| IP filtering |
| QoS |
| CoS |
| Multicast |
| IGMP |
| ONVIF compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP authentication |
| System Requirements for Web Interface |
| Browsers: Internet Explorer, Firefox, Chrome |
| Event Management |
| Motion/Sound detection |
| Event notification and uploading of snapshots & video clips via e-mail or FTP |
| Supports multiple SMTP and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Take snapshots/video clips and save to local hard drive via web browser |
| Configuration interface accessible via web browser |
| Mobile Support |
| mydlink Lite/mydlink+ mobile app for iPhone™, iPad™, and Android™ mobile devices |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 8/7/Vista/XP |
| Web browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions in web interface |
| Scheduled motion triggered, or manual recording options |
Fiziksel Özellikler
| Weight |
| 130g Without Stand |
| External Power Adapter |
| Input: 100 to 240 V AC, 50/60 Hz |
| Output: 5 V DC, 1.2 A |
| Power Consumption |
| 3.5 W |
| Temperature |
| Operating: 0° to 40°C |
| Storage: -20° to 70°C |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE |
| CE LVD |
| FCC Class B |
| C-Tick |
Teknik Kısa
Çözünürlük : 1MP (720P)
Irled : Var
Ses : Var
Depolama : Var
