Açıklama

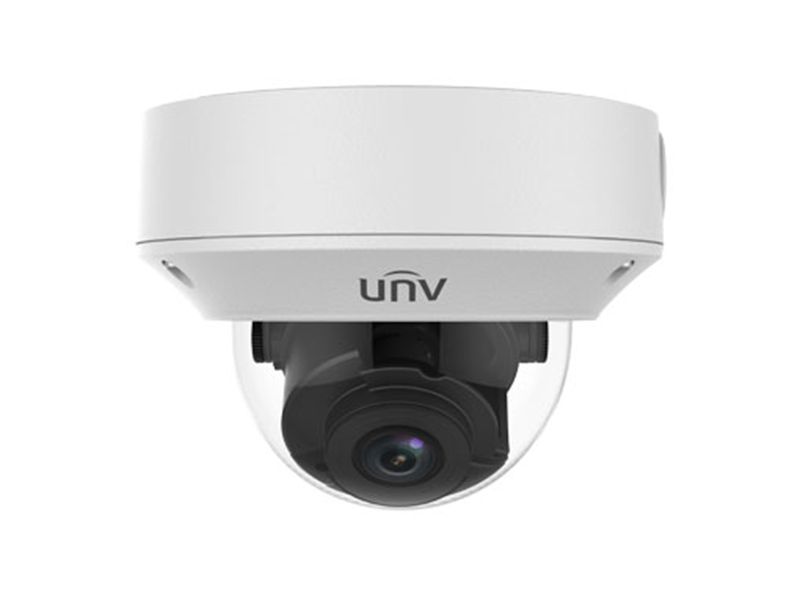

Uniview IPC3234L3 VSP D IP IR Dome Kamera

Name: Uniview IPC3234L3 VSP D IP IR Dome Kamera
Brand: Uniview

Optics

Compression

Network

Structure

	IPC3234L3-VSP-D				IPC3234L3-VSPZ28-D
Camera
Sensor	1/3", 4.0megapixel,progressivescan,CMOS
Lens	2.8~12 mm,manualzoom lens				2.8~12mm,motorized zoom lens
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	63		25.2	12.6		6.3
	12mm	270		108	54		27
Angle of View (H)	91.0°~27°
Angle of View (V)	54.4°~13.7°
Angle of View (O)	118.3°~33.2°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~80°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.02Lux(F1.6 AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter withautoswitch (ICR)
Digital noise reduction	2D/3D DNR
IR Range	Up to 30m(98 ft)IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265,H.265,H.264,MJPEG
H.264 code profile	Baseline profile,Main Profile,High Profile
Frame Rate	Main Stream:4MP(2048*1520):Max. 20fps;
	Sub Stream:720P(1280*720):Max. 30 fps;
	Third Stream:D1(704×576):Max. 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
Compatible Integration	ONVIF(Profile S,Profile G),API
Interface
Network	1 RJ4510M/100MBase-TXEthernet
Edge Storage	MicroSD,up to128GB
General
Power	DC12V±25%, PoE(IEEE802.3 af)
	Power consumption:Max 6W
Dimensions (Ø x H)	Φ148 x 111.3 mm(Ø5.8” x 4.4”)
Weight	0.92kg (2.0lb)
Working Environment	-40°C ~ +60°C(-40°F ~ 140°F),Humidity:10%~ 95%RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
