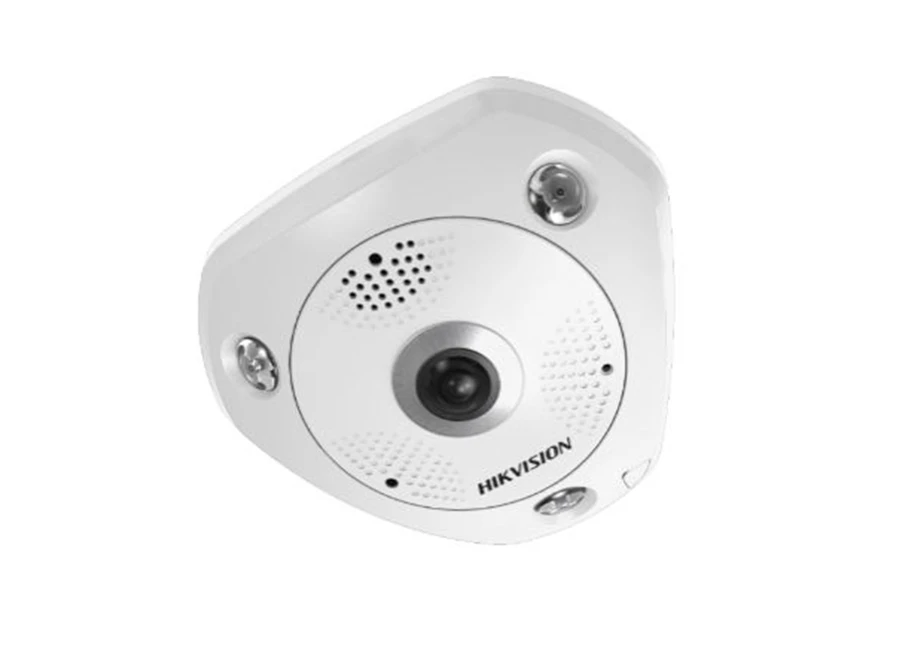

Hikvision DS 2CD6365G0 IV IR IP Fisheye Kamera

Özellikler

1/1.8” Progressive Scan CMOS
Maximum 3072 × 2048 @30fps
Up to 15 live view display modes
120 dB WDR
Up to 15m IR range
Built-in microphone and speaker
Smart features
6 behavior analyses, and 3 exception detections
Heat map with deep learning algorithm
Intersection analysis by deep learning

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.047 Lux @ (F2.6, AGC ON),
Minimum Aydınlatma	B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
Slow shutter	Yes
Objektif Hızı	1 s to 1/100,000 s
Lens	1.27 mm
Lens Mount	M12
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/ Main Profile /High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	-S: G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Çift Akış	Yes
Max. Image Resolution	3072 x 2048
Ana Akış	50Hz: 25fps (720 × 720, 720 × 480)
Ana Akış	60Hz: 30fps (720 × 720, 720 × 480)
Çerçeve Hızı	50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Çerçeve Hızı	60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Görüntü İyileştirme	BLC, HLC, defog, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, illegal login, HDD full, HDD error
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Intelligent
People Counting	Support
Heat Map	Support
Interface
Audio	2 built-in microphones, 1 built-in speaker, mono sound; -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
Alarm	1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Butonu	Yes
General
Power Supply	12 VDC±20%, PoE (802.3at, class 4),-S model: two-core terminal block, Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
Güç Tüketimi	12 VDC, 1 A, max. 12.5 W
Güç Tüketimi	PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W
Impact Protection	IK10
Weather Proof	IP67
Boyutlar	Without –V model: 167.4 × 152.8 × 50 mm (6. 6" × 6" × 2")
Boyutlar	With –V model: 167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
Ağırlık	Approx. 1400 g (3.09 lbs)
