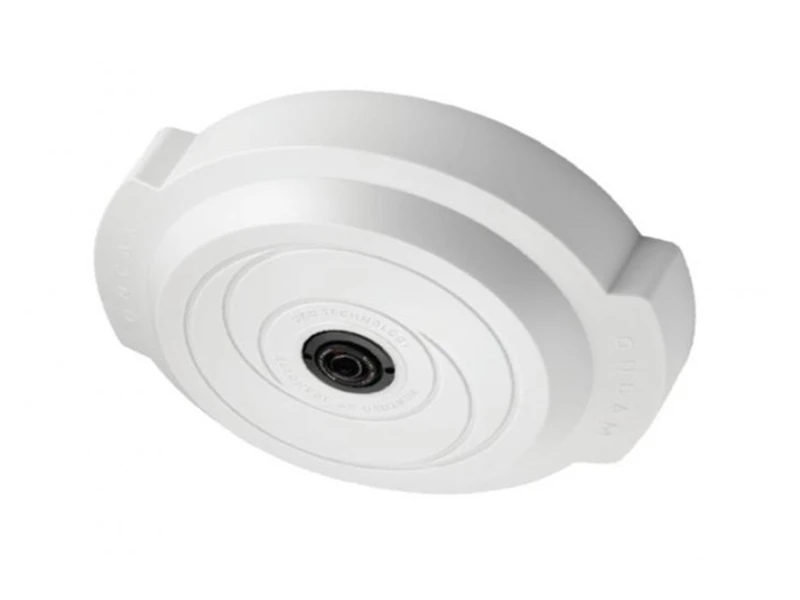

Pelco EVO 05NID Panoramik IP Kamera
Özellikler
360° indoor IP camera with a 5-megapixel sensor and no moving parts
- Constant 360° surveillance, no blind spots
- No moving parts, no maintenance, silent operation
- 10fps at 4MP and 15fps at 2MP, 1MP and ¼MP
- 0.2 lux minimum illumination, enhanced WDR
- PoE or 12VDC powered
Advanced Event Management
- Configurable actions based on motion or hardware triggers
- Configurable privacy regions
- Video Motion Detection within defined areas of interest
- Local alarm digital input and output
- Audio microphone input
Whether wall or ceiling mount is required
- Quick and easy installation
- Professional lightweight indoor enclosure
- Pleasing aesthetic in white finish
- Convenient surface-mounting enclosure
- Suitable for ceiling, wall or table mounted applications
- A range of mounting accessories allows for ceiling, wall, pole and pendant mounting
Fully integrated with multiple VMS platforms to provide live and retrospective dewarping
- Market leading Oncam 3D dewarping software
- Camera features are accessible via VMS platforms
- Optimises bandwidth and storage utilisation
- Simultaneous multiple video streams; resolutions from 528x480 to 2144x1944
- H.264/MJPEG streaming with multiple quality levels
- Configurable password protection
- Intuitive web-based interface for viewing and configuration
- Integrated with Digital Sentry version 7.5 and other leading VMS platforms
Teknik Özellikler
| SKU | EVO-05NID |
| Manufacturer | Pelco |
| Features | Audio, Auto Gain Control, Automatic White Balance, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Image Device | 1/2.5-Inch CMOS Sensor |
| Minimum Scene Illumination | 0.2 lux = 50 IRE F/2.0 (6500K) |
| Operating Humidity | Up to 98% (In accordance with BS EN 60068-2-30) |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Consumption | 4.512W (PoE) / 3.276W (DC12V) |
| Privacy Zone | 10 configurable privacy regions |
| Protocols | TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RSTP, uPNP |
| S/N Ratio | 45dB |
| Signal System | NTSC, PAL |
| Video Output | BNC |
| Processor | Computer with 1Ghz 32-bit (x86) or 64-bit (x64) processor |
| Angle of View | 180° hemisphere |
| Motion Detection Tracking | 12 regions of interest; VMD; configurable response; adjustable characteristics |
| Automatic White Balance | Auto White Balance (Range = approx. 2500K~8000K) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
Teknik Kısa
Çözünürlük : 5MP
