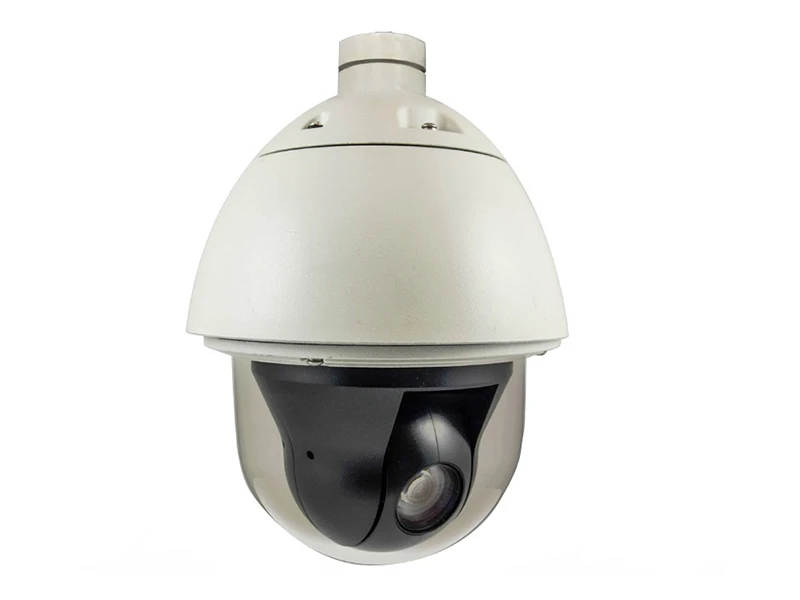

Acti B927 IP HD Speed Dome Kamera

Teknik Özellikler

Product Type PTZ
Maximum Resolution 12MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Day / Night Yes
Superior Low Light Sensitivity Yes
Minimum Illumination Color: 0.1 lux, B/W: 0.05 lux at F1.6
Mechanical IR Cut Filter Yes
IR LED No
Lens Zoom, f4.7-94mm / F1.6-3.5, DC iris, Auto focus
Zoom Ratio 20x optical
Panning and Tilting Range Pan: 0°-360° (with Auto-flip); Tilt: -20°-200°
Lens Mount Board mount
Horizontal Viewing Angle 60.8°-3.4°
Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 20 fps at 4000 x 3000
30 fps at 3840 x 2160
30 fps at 2592 x 1944
30 fps at 2048 x 1536
60 fps at 1920 x 1080
60 fps at 1280 x 720
60 fps at 640 x 480
60 fps at 320 x 240
Horizontal Resolution (TV lines) 2150 TVL
Multi-Streaming Triple streams
Wide Dynamic Range Advanced WDR (80 dB)
Digital Noise Reduction 2D+3D DNR
Digital Image Stabilizer Digital Image Stabilizer
S/N Ratio 56 dB
Audio 2-way (Line-in, Line-out)
Network Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNSDDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P
Network Connector RJ-45
Digital Input/Output 2/2
Local Storage MicroSDHC/MicroSDXC memory card slot (card not included)
Power Source AC 24V; High PoE
Environmental Casing Weatherproof (IP68); Vandal proof (IK10
Bundled Accessories Power adapter
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box
Built-in Analytics Motion Detection, Tamper, Face Detection, Digital Image Stabilizer, Object Counting, People Counting,
PTZ Auto Tracking, Digital Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object,
Automatic License Plate Recognition (some of the algorithms may not be available in the first release, can be upgraded for free later)
Software Based Analytics Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area,
(require PC based Smart Search Tool, IVS Server or ALPR Server) Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction,
Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection
Client PC Operating System Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP
PC Web Browser IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime
ONVIF Compliant Yes
Heater Yes
Fan Yes
Starting Temperature -40°C ~ 50°C
(-40°F ~ 122°F) within 30 minutes
Operating Temperature -40°C ~ 50°C
(-40°F ~ 122°F)
Approvals CE, FCC, IP68, NEMA 4X, IK10
Warranty 3 Years*
(3 Months in continuous motion)

Teknik Kısa

Çözünürlük : 6MP
Ses : Var
Depolama : Var
