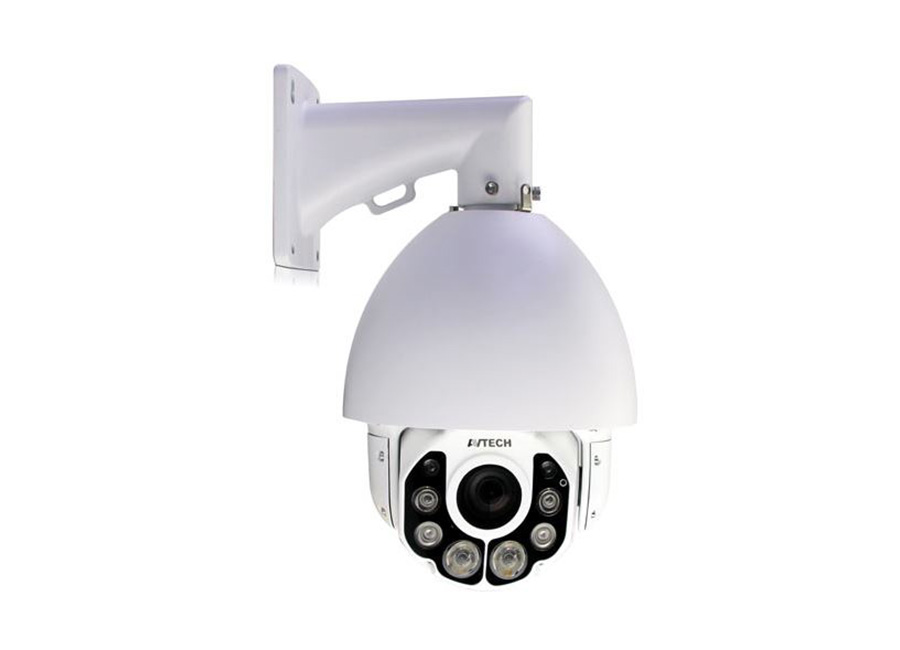

Avtech AVZ593 IP Speed Dome Kamera
Özellikler
- Tribrid video output of IP, TVI and AHD
- Zoom lens of f4.5 ~ 135mm with 30x optical zoom and auto focus
- External alarm I/O device connection
- WDR to increase image recognizability in overexposure and dark areas
- IR effective range up to 200 meters
- IP66 for outdoor application
- Line in / out jacks available for audio transmission
Teknik Özellikler
| Video Output | IP, TVI,AHD and CVBS |
| Compression Format | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 4 (H.264 /MJPEG) |
| Bitrate Control | SVBR control (VBR + Max bitrate) |
| Image Sensor | 1/2.8" SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.8(Wide)~F4.4(Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f4.5 ~ 135mm / F1.8 (Wide) ~ 4.4(Tele), auto focus |
| Viewing Angle | 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal) |
| 30X: 2.5° (Horizontal) / 1.4° (Vertical) / 2.8° (Diagonal) | |
| IR LED | 8 Units |
| IR Effective Distance | Default: Up to 200 meters / IR Turbo mode: More than 200 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | Auto / 2500K / 3200K / 4200K / 5800K / 9500K |
| AGC | YES |
| IRIS Mode | YES |
| Sharpness | YES |
| WDR | YES |
| POE | YES |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| MicroSD Card Slot | YES (up to 64GB) |
| RS-485 | YES |
| Weather-proof | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | AC 24V / DC19V |
| Current Consumption (±10%) | DC19V / 1.3A |
| Power Consumption (±10%) | PoE / PoN: 31.3W; DC Adapter: 25W |
| Net Weight (kg) | 6.9 |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
