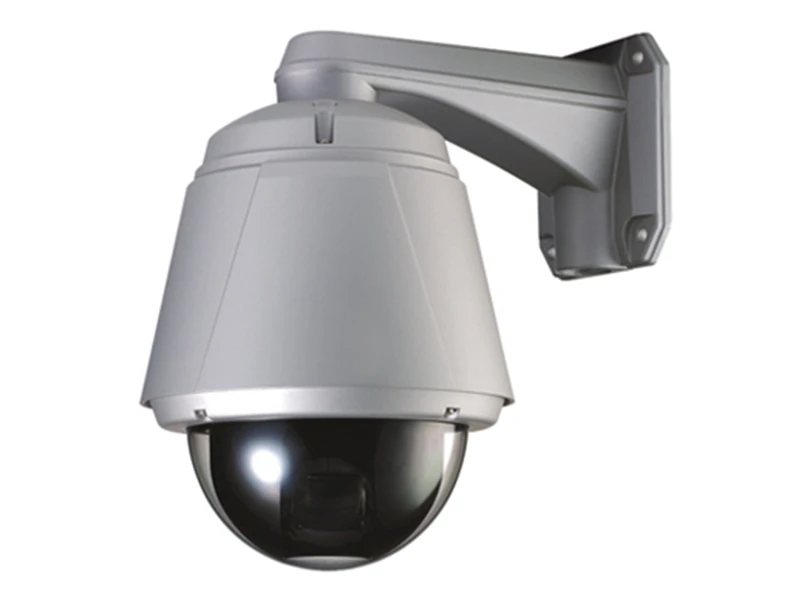

FlexWATCH FW7706 FNP IP HD Speed Dome Kamera
Özellikler
| Camera |
| Image Sensor: 1/2.8" 2.37M Progressive scan CMOS Sensor |
| Lens: 4.7 ~ 94.0mm 20x optical, 12x digital |
| Min Illumination: 0.001 Lux |
| Use: WDR, Auto(ICR), B&W, DSS |
| Type: In/Outdoor |
| Video |
| Compression: H.264, MJPEG |
| Max Streaming Speed: Max 30fps @ 1920x1080 |
| Out: CVBS out |
| Bit Rate Control: VBR/CBR (H.264, 32k~12Mbps) |
| Standard: ONVIF(Profile S) / PSIA(v1.0) |
| Audio |
| In/Out: 2 way(1 in / 1 out) |
| Compression: 8bit G.711, 8Khz, 8KByte/sec |
| Interface |
| Alarm In/Out: 1 DI / 1 DO |
| Serial Port: RS-232C/RS-485 |
| Peripheral Interface |
| Memory Slot: Micro SDHC |
| Network |
| LAN Interface: 10/100-base-T |
| Protocol: HTTP, RTP/RTSP, TCP/IP(V4/V6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPNP and etc |
| Viewer: IE, Safari, Chrome, Firefox etc, CMS, QuickTime |
| Key Function |
| Remote Admin: Web based administration, setup, control, and upgrade |
| Advanced Service: E-mail / FTP / Alarm buffering Event notification |
| Dynamic IP: DDNS / uPnP support |
| Motion Detection: H/W Detection(12x12=144Block) |
| Security: Admin Multilevel password(256 Users) IP Port Filtering for Access Level |
| Hardware |
| Certification: KC/FCC/CE, RoHS, IP66 |
| Working Condition: -10℃ ~ +50℃ / 10% ~ 90% RH |
| Power Supply: SMPS, DC 12V/4.16A AC 100/240V, 50/60HZ, 21.6W |
| Size/Weight: 148.5Ø x 200(L) x 215.5(H) (in mm) About 4.200Kg w/o SMPS & brac |
FlexWATCH FW7706 FNP IP HD Speed Dome Kamera Pdf Dosyası236.95 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
