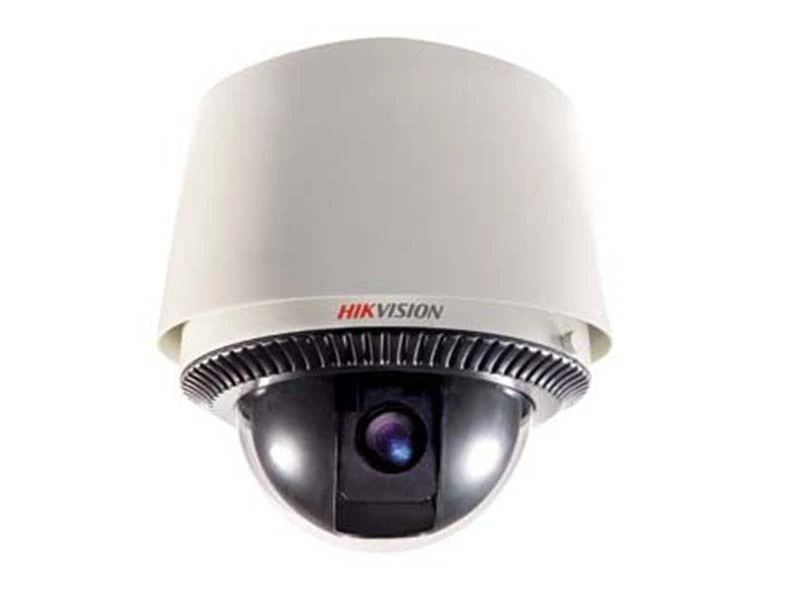

Hikvision DS 2DF1 613H IP PTZ Speed Dome Kamera

Özellikler

1/4" SONY EXVIEW CCD
±0.1° preset accuracy
400°/s pan preset speed and 200°/s tilt preset speed
360° endless pan range
H.264 video codec
Fiber connector option
Weather Proof: IP66 standard(outdoor)
Optical zoom:18x.Digital zoom:12x

Teknik Özellikler

Camera
Horizontal Resolution	480TVL
Signal System	PAL/NTSC
Minimum Illumination	0.7Lux / F1.4 (Color); 0.01Lux / F1.4 (B/W)
AGC	Auto/Manual
BLC	ON/OFF
Shutter Time	PAL: 1/3~1/10,000s; NTSC: 1/4~1/10,000s
Day& Night	ICR
Digital Zoom	Up to 12x
Privacy Masking	24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus	Auto/Manual
Lens
Focal Length	4.1~73.8mm,18X
Zoom Speed	Approx. 2.1sec (Optical WIDE-TELE )
Angle of View	48° to 2.8°(WIDE-TELE )
Minimum Working Distance	290mm (WIDE)
Aperture Range	F1.4-F3.0
Pan & Tilt
Pan Speed	Manual: approx. 0.3°/s-160°/s or 0.3°/s-220°/s
Tilt Speed	Manual: approx. 0.5°/s-40°/s or 0.5°/s-60°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	200
Patrol	8
Pattern	4
Power-off Memory	Support
Park Action	Call Preset/Patrol/Pattern/Auto Scan/Random Scan/Frame Scan after a pre-defined inactivity time interval
PTZ Position Display	ON/OFF
Alarm
Alarm Input	2
Alarm Output	2
Alarm Actions	Preset 1 ~ 200, Patrol 1 ~ 8, Pattern 1 ~ 4, SD card recording, Terminal output, Notification on Client
Input & Output
Monitor Output	1.0Vp-p, 75 Ohm, BNC
Audio Input	1 channel Mic. Input (applicable microphone, plug-in power type), 2.0~2.4Vp-p, 1k Ohm±10%
Audio Output	1 channel audio output, linear level
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Frame Rate	25fps (704×576)
Audio Compression	OggVorbis, 16Kbps
Audio Mode	OFF/Audio input/Audio output
Protocols	TCP/IP
No. of Simultaneous Users	Up to 6 users
Dual Stream	Support
Mini SD Card	Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB
Security Measures	User authentication (ID and PW), host authentication (MAC address)
Client GUI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display	Time: Week: Date, 6 formats on the Client
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language	English / Chinese
Power Consumption	30W Max (Heater ON)
Working Temperature/Humidity	-30°C ~ 60°C
Protection Level	IP66 with TVS 3000V lightning protection, surge protection and voltage transient protection
Dimensions	6 inch
Weight (approx.)	5kg
