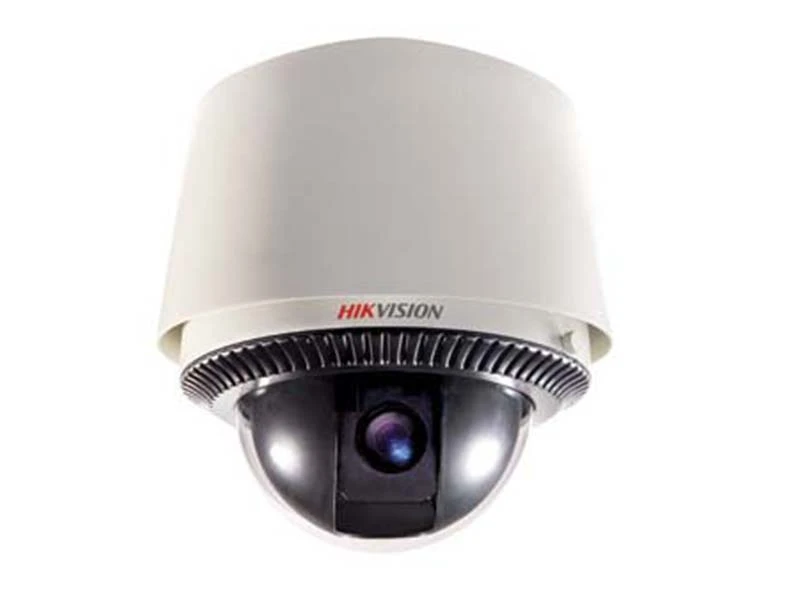

Hikvision DS 2DF1 616H IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Horizontal Resolution | 540 TVL(Color) |
| 570 TVL(B/W) | |
| Signal System | PAL/NTSC |
| Minimum Illumination | 0.2Lux/F14(Color) |
| 0.02Lux/F1.4(B/W) | |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| Shutter Time | PAL:1/50~1/10,000s |
| NTSC:1/60~1/10,000s | |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 3.5~105mm,30X |
| Zoom Speed | Approx.5.4s(Optical Wide-Tele) |
| Angle of View | 56.4-2.0degree(Wide-Tele) |
| Minimum Working Distance | 10-1000mm(Wide-Tele) |
| Aperture Range | F1.4-F3.7 |
| Pan & Tilt | |
| Pan Speed | Pan Manual Speed: 0.1°~300°/s, |
| Pan Preset Speed: 400°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°~90°/s, |
| Tilt Preset Speed: 200°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 8 patrols, each patrol up to 32 presets |
| Pattern | 4 patterns, with the total recording time not less than 10 min |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Output: | 2 |
| Alarm Actions | Preset 1 ~ 200, Patrol 1 ~ 8, Pattern 1 ~ 4, SD card recording, Terminal output, Notification on Client |
| Input & Output | |
| Monitor Output | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | Audio out, line level, 600Ω |
| Network | |
| Ethernet | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) |
| Frame Rate | PAL :25 fps (704×576) |
| NTSC: 30 fps (704×480) | |
| Audio Compression | OggVorbis, 16Kbps |
| Audio Mode | OFF/Audio input/Audio output |
| Protocols | TCP/IP, HTTP, DHCP, DNS, RTP / RTCP, PPPoE (FTP, SMTP, NTP, SNMP addible) |
| No. of Simultaneous Users | Up to 6 users |
| Dual Stream | Support |
| Mini SD Card | Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB |
| Security Measures | User authentication (ID and PW), host authentication (MAC address) |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English / Chinese |
| Power Consumption | 15W max(30W max with heater, outdoor dome) |
| Working Temperature/Humidity | -30 °C~65°C |
| Protection Level | IP66 with TVS 3000V lightning protection, surge protection and voltage transient protection |
| Dimensions | Φ243(mm)×287(mm) |
| Weight (approx.) | 5kg |
Hikvision DS 2DF1 616H IP Speed Dome Kamera Pdf Dosyası450.46 KB
