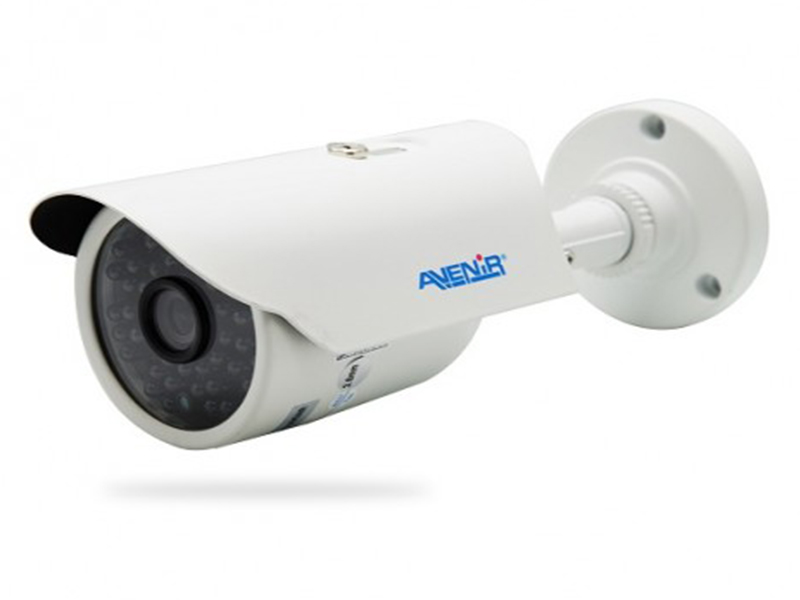

| Model | AV-448AHD |
| DSP | NEXTCHIP NVP2431H |
| Imaging Device | 1/4'' CMOS APTINA AR0141 |
| Total Pixels | 1280H x 800V |
| Scanning System | Progressive Scan |
| Synchronization | Internal |
| Video Output P/N | AHD : 1.0MP 800P |
| CVBS:1200 Tvl |
| Lens | 3.6 mm / 6 mm Optional |
| IR Led | 4 Array Led |
| S/N Signal | ＞46db |
| Min. IIIumination | （Color）：0.05LUX （F1.2，501RE） |
| （B/W）：0LUX （F1.2，501E） |
| ESC | 1/50（60）~1/100，000（120，000）sec |
| OSD Language | CHN1,CHN2,GER,FRA,ITA,SPA, |
| POL,RUS,POR,NED,TUR,ENG |
| BLC | BLC/HLC/D-WDR |
| Day/Night Selection | Color/Auto D/N /B/W/EXT |
| Gain Control | 0db-42db |
| Whtie Balance | ATW2700°K~10500°K |
| AWC-SET/INDOOR/OUTDOOR/MANUAL /AWB |
| Motion Detenction | On/Off Programmable 4 Zones |
| Privacy Making | On/Off Programmable 4 Zones |
| DNR | 2DNR/3DNR |
| Digital Effect | （FREEZE） |
| U/D/L/R,MIRROR |
| Input Voltage | DC 12V |
| Power Consumption | Max 5w |
