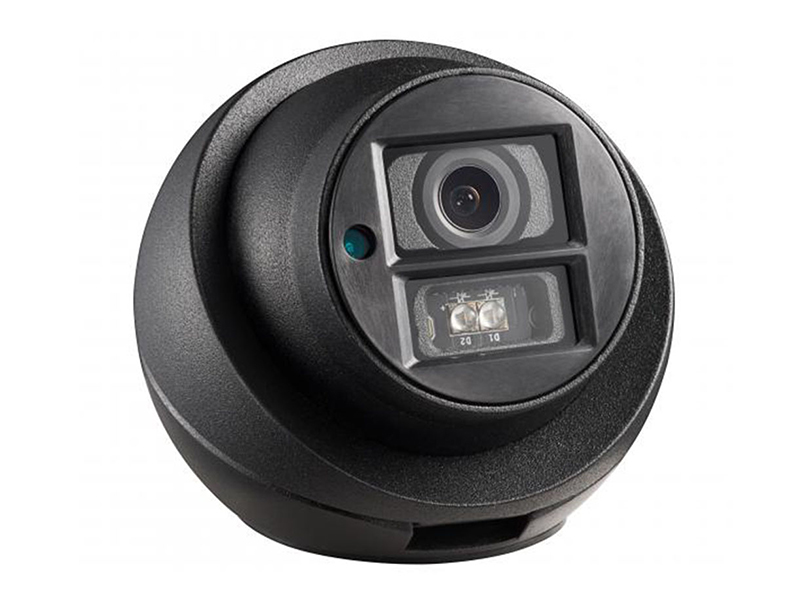

Hikvision AE VC022P(N) IT AHD Mobil Dome Kamera

Camera
Image Sensor	1MP CMOS Image Sensor
Signal System	PAL/NTSC
Effective Pixels	1280(H)×800(V)
Min. Illumination	0.1Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	2.1mm（2.8mm、 3.6mm optional）
Lens Mount	M12
Adjustment Range	Pan:0°- 50°; Tilt:0°- 50°; Rotation:0°- 360°
Day& Night	Electronic
Horizontal Resolution	720TVL
Synchronization	Internal Synchronization
CVBS Output	1Vp-p composite output (75 Ω/Aviation plug)
S/N Ratio	More than 62 dB
Menu
AGC	Support
Interface
Video Out	1Vp-p composite output (75 Ω/Aviation plug)
General
IR Range	20-30m
Operation Condition	-40℃~75℃, Humidity 90% or less (non-condensing)
Power Supply	6VDC to 16VDC
Power Consumption	3.5W MAX
Weather Proof	IP68
Dimension	74×64.47×71.16
Weight	400g
