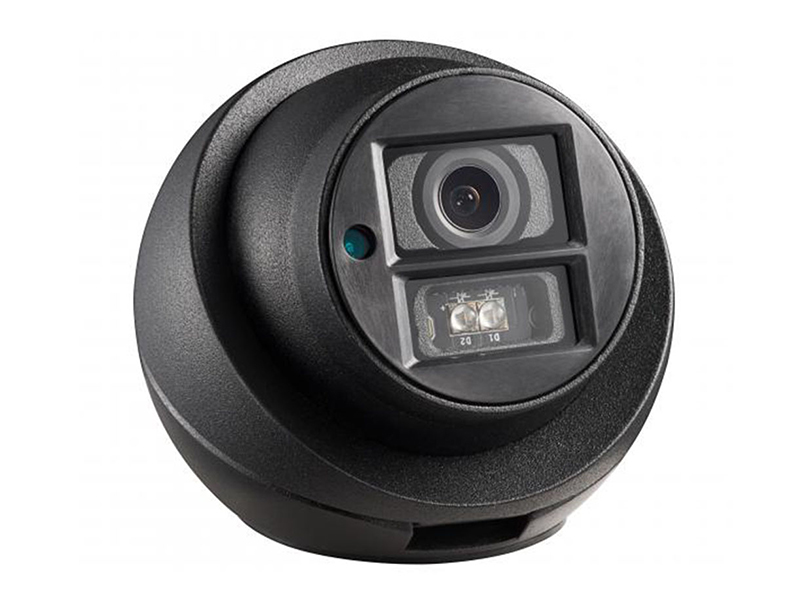

Hikvision AE VC022P(N) ITS AHD Mobil Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280(H)×800(V) |
| Min. Illumination | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.1mm（2.8mm、 3.6mm optional） |
| Lens Mount | M12 |
| Adjustment Range | Pan:0°- 50°; Tilt:0°- 50°; Rotation:0°- 360° |
| Day& Night | Electronic |
| Horizontal Resolution | 720TVL |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Menu | |
| AGC | Support |
| Interface | |
| Audio In | Built-in Mic |
| Audio Out | 1-ch audio interface(Aviation plug) |
| Video Out | 1Vp-p composite output (75 Ω/Aviation plug) |
| General | |
| IR Range | 20-30m |
| Operation Condition | -40℃~75℃, Humidity 90% or less (non-condensing) |
| Power Supply | 6VDC to 16VDC |
| Power Consumption | 3.5W MAX |
| Weather Proof | IP65 |
| Dimension | 74×64.47×71.16 |
| Weight | 400g |
Hikvision AE VC022P(N) ITS AHD Mobil Dome Kamera Pdf Dosyası430.84 KB
