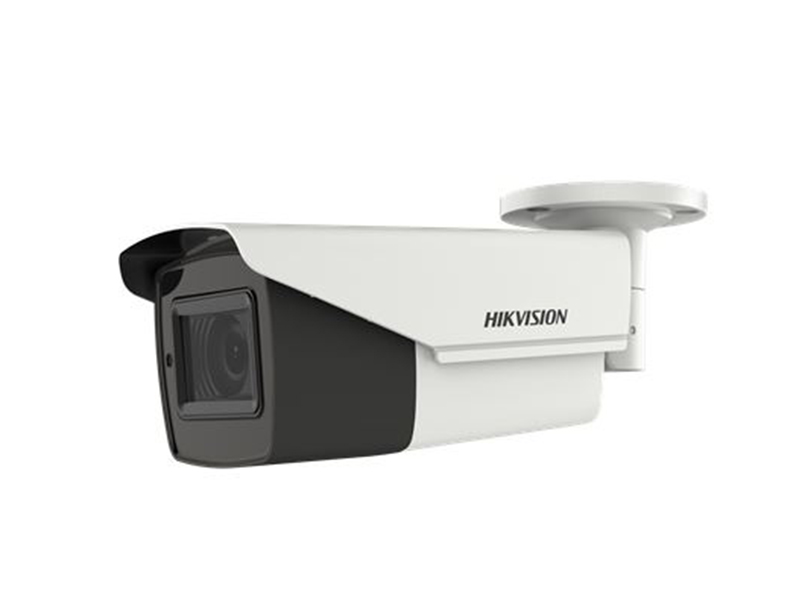

Hikvision DS 2CE19U7T (A)IT3ZF AHD Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 8.29 MP high performance CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto / Manual |
| BLC | Support |
| AGC | Support |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 9 VDC to 15 VDC ( -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC) |
| Weather Proof | IP67 |
| IR Range | Up to 80m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 925 g (2.04 lb.) |
Hikvision DS 2CE19U7T (A)IT3ZF AHD Bullet Kamera Pdf Dosyası907.58 KB
