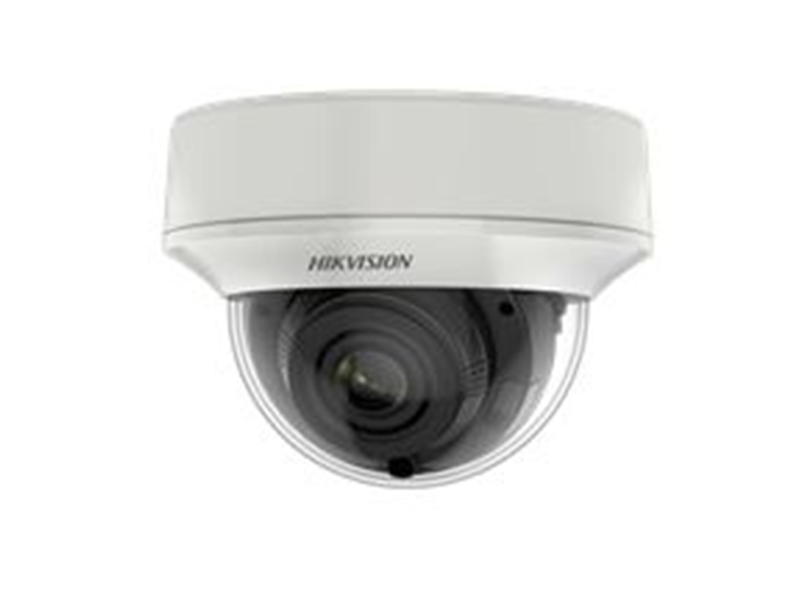

Hikvision DS 2CE56H8T (A)ITZF AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC |
| Synchronization | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction) | Level 1 to 9 |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | Support |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 9 VDC to 15 VDC ( -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC) |
| IR Range | Up to 60m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | Ø 136 mm × 101.9 mm ( Ø 5.35" × 4.01") |
| Weight | Approx. 400 g (0.88 lb.) |
| -A: Approx. 430 g (0.95 lb.) | |
Hikvision DS 2CE56H8T (A)ITZF AHD Dome Kamera Pdf Dosyası969.74 KB
