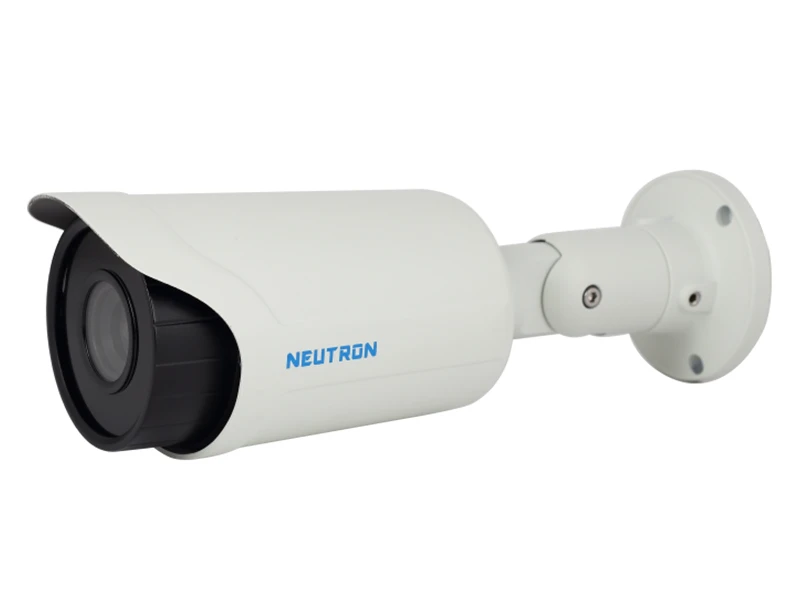

| Model: TRA-7108 SHD |
| DSP: NEXTCHIP NVP2441H |
| Imaging Device: 1/2.8'' CMOS APTINA AR0141 |
| Total Pixels: 1280(H) x 800(V) |
| Scanning System: Progressive Scan |
| Synchronization: Internal |
| Video Output P/N: AHD 1.0MP 800P,CVBS-COMET_1280H/CVBS_960H |
| Lens: 6mm Sabit Lens |
| IR Led: Starlight Renkli Aydınlatma |
| S/N Signal: ＞46db |
| Min. IIIumination: （Color）：0.05LUX （F1.2，501RE）,（B/W）：0.03LUX （F1.2，501E） |
| ESC: 1/50（60）~1/100，000（120，000）sec |
| OSD Language: CHN1,CHN2,GER,FRA,ITA,SPA,POL,RUS,POR,NED,TUR,ENG |
| BLC: BLC/HLC/D-WDR |
| Day/Night Selection: Color/Auto (D/N) /B/W/EXT |
| Gain Control: 0db-42db |
| Whtie Balance: ATW(2700°K~10500°K),AWC-SET/INDOOR/OUTDOOR/MANUAL /AWB |
| Motion Detenction: On/Off (Programmable 4 Zones) |
| Privacy Making: On/Off (Programmable 4 Zones) |
| DNR: 2DNR/3DNR |
| Digital Effect: （FREEZE）,(U/D/L/R,MIRROR) |
| Input Voltage: DC 12V |
| Power Consumption: Max 4w |
| Operating Temp/Hum: -20℃ ~ 65℃ / 30%RH ~ 95%RH |
| Storage Temp/Hum: -20℃ ~ 65℃ / 30%RH ~ 95%RH |
