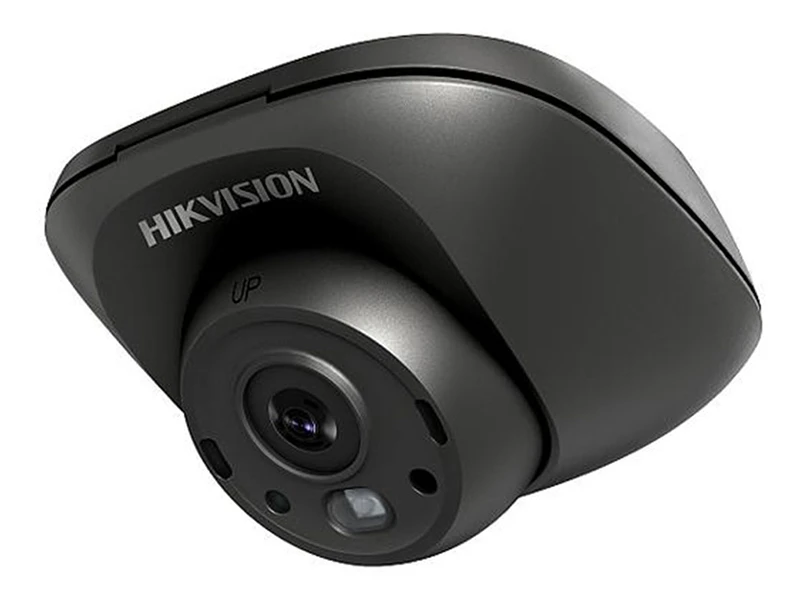

Hikvision AE VC112T ITS HD TVI Mobil Turret Kamera
Özellikler
- 0.1Lux @(F1.2,AGC ON), 0 Lux with IR
- 720P high definition
- Adopt wide-angle lens with wider monitoring coverage
- Adopt EXIR technology
- Support electronic shutter and AGC
- Patented universal regulating mechanism, easy to adjust
- Anti-vibration design and aviation port for mobile environments
- Suitable for mobile environments
Teknik Özellikler
| Camera | |
| Image Sensor | 1MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1296(H)x732(V) |
| Min. Illumination | 0.1Lux @ (F1.2,AGC ON), 0 lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.1mm (2.8mm Optional) |
| Lens Mount | M12 |
| Adjustment Range | Pan: -35°to 35°; Tilt: 0°to 70°; Rotation: 0°to 360° |
| Day& Night | Electronic |
| Video Frame Rate | 720p@25fps/720p@30fps |
| Synchronization | Internal Synchronization |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Menu | |
| AGC | Support |
| Interface | |
| Audio In | Built-in Microphone |
| Audio Out | 1-ch, Aviation Port (Output Impedance: 1KΩ±10%) |
| Video Out | 1Vpp Composite Output |
| General | |
| IR Range | 3m |
| Operation Condition | -30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing) |
| Power Supply | 6VDC to 16VDC |
| Power Consumption | MAX. 2.5W |
| Dimension | 74.2mm×76.1mm×37.9mm (2.92"×3.00"×1.49") |
| Weight | Approx. 200g (0.44lb) |
Hikvision AE VC112T ITS HD TVI Mobil Turret Kamera Pdf Dosyası642.79 KB
