Açıklama

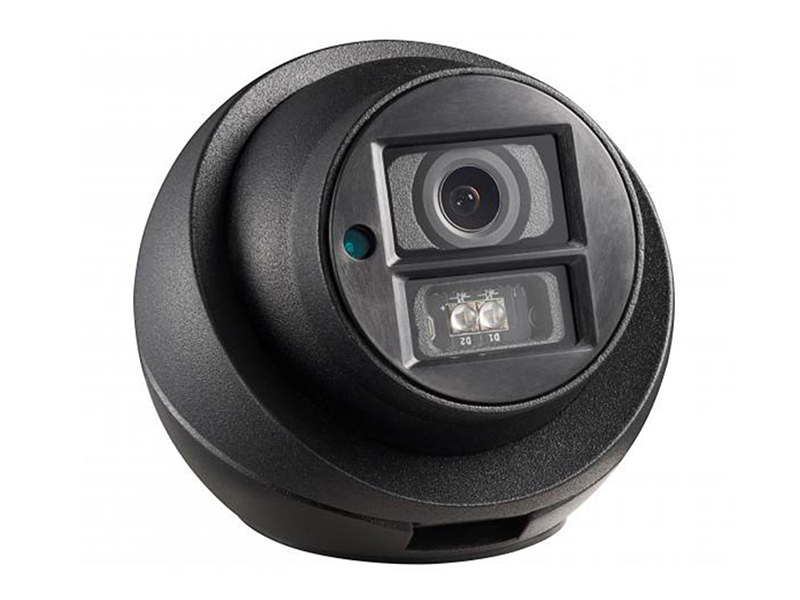

Hikvision AE VC122T ITS HD TVI Mobil Dome Kamera
Özellikler
- 1.0MP Progressive Scan CMOS
- Turbo HD output, up to 720P resolution
- 0.1Lux @(F1.2,AGC ON),0 Lux with IR
- Adopt wide-angle lens with wider monitoring coverage
- Support electronic shutter and AGC
- Patented universal regulating mechanism, easy to adjust
- Anti-vibration design and aviation port for mobile environments
- Built-in microphone
Teknik Özellikler
| Camera | |
| Image Sensor | 1MP CMOS Image Sensor |
| Effective Pixels | 1280(H)*720(V) |
| Min. Illumination | 0.1Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.1mm(2.8mm/3.6mm optional) |
| Lens Mount | M12 |
| Adjustment Range | Pan:0°- 60°; Tilt:0°- 50°; Rotation:0°- 360° |
| Day& Night | Electronic |
| Horizontal Resolution | 950TVL |
| Video Frame Rate | 720p@25fps/720p@30fps |
| Synchronization | Internal Synchronization |
| Menu | |
| AGC | Support |
| Interface | |
| Audio In | Built-in Microphone |
| Audio Out | 1-ch audio interface(Aviation plug) |
| Video Out | Aviation port |
| General | |
| Operation Condition | -40℃~75℃, Humidity 90% or less (non-condensing) |
| Power Consumption | 3.5W MAX |
| IR Range | -IR: approx 20 to 30 meters |
| Dimension | 74×64.47×71.16 |
| Weight | 200g |
Hikvision AE VC122T ITS HD TVI Mobil Dome Kamera Pdf Dosyası631.12 KB
