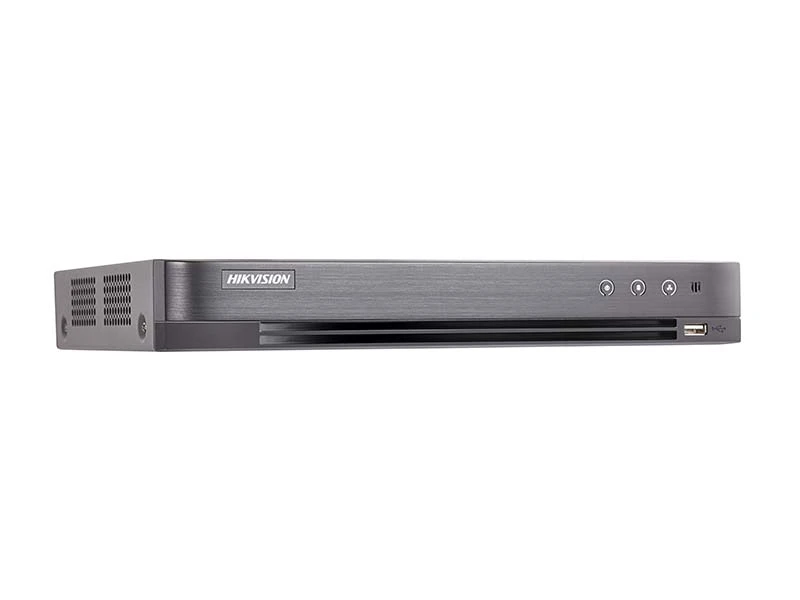

Hikvision DS 7016HQHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 3 MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
- Long distance transmission over UTP and coaxial cable
- 4/8/16-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Ses girişi | 16-ch |
| Analog ve HD-TVI video girişi: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Desteklenen Kameralar | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| Video Girişi Arayüzü | BNC (1.0 Vp-p, 75Ω) |
| Ses Sıkıştırma | G.711u |
| Ses Girişi Arayüzü | RCA (2.0 Vp-p, 1 kΩ) |
| Çift Yön Ses: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | |
| CVBS Çıkışı: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| Kayıt Çözünürlüğü | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
| When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
| Çerçeve Hızı | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
| For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3 MP@15fps | |
| 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video Bit Hızı | 32 Kbps-6 Mbps |
| Akış Tipi | Video/Video&Audio |
| İki Yönlü ses | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Ses Çıkışı | 1-ch RCA(Linear, 1kΩ) |
| Ses Bit Hızı | 64kbps |
| Çift Akış: | Support |
| Oynatma Çözünürlüğü | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Senkronize yeniden oynatma | 16-ch |
| Ağ yönetim | |
| Uzak Bağlantı | 128 |
| Ağ Protokolleri | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Sabit Disk Sürücü | |
| Arayüzü Türü | 1 SATA Interface |
| Kapasite | Up to 6 TB capacity for each disk |
| Harici Arayüzü | |
| Ağ Arayüzü | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Arayüzü | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
| Seri bağlantı Arayüzü | 1; standard RS-485 serial interface, half-duplex |
| Alarm girişi | 16-ch |
| Alarm Çıkışı | 4-ch |
| Genel | |
| Güç Kaynağı | 12 VDC |
| Tüketim | ≤ 25W(without hard disks) |
| Çalışma Sıcaklığı | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Çalışma Nem oranı | 10% to 90% |
| Boyutlar | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Ağırlık | ≤ 2 kg (4.4 lb) |
Hikvision DS 7016HQHI K1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası730.19 KB
