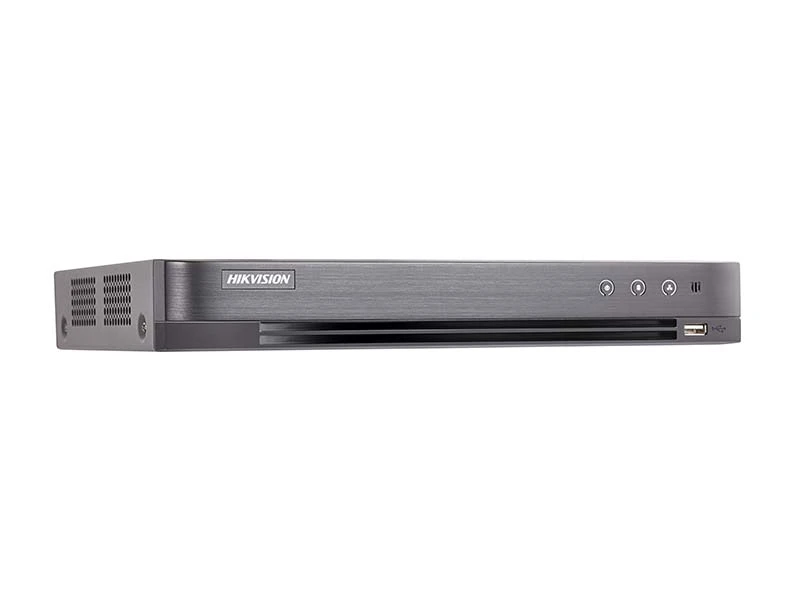

Hikvision DS 7B16HQHI K1 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
•Connectable to H.265+/H.265/H.264+/H.264 IP cameras
Up to 3 MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
Long distance transmission over UTP and coaxial cable
4/8/16-ch synchronous playback

Teknik Özellikler

Video/Audio Input
Ses girişi	16-ch
Analog ve HD-TVI video girişi	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Desteklenen Kameralar	Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
	Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVBS input
Video Girişi Arayüzü	BNC (1.0 Vp-p, 75Ω)
Ses Sıkıştırma	G.711u
Ses Girişi Arayüzü	RCA (2.0 Vp-p, 1 kΩ)
Çift Yön Ses	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Çıkışı	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Çerçeve Hızı	Main stream:
	When 1080p Lite mode not enabled:
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
	For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	3 MP@15fps
	1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	Sub-stream:
	WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Hızı	32 Kbps-6 Mbps
Akış Tipi	Video/Video&Audio
İki Yönlü ses	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Ses Çıkışı	1-ch RCA(Linear, 1kΩ)
Ses Bit Hızı	64kbps
Çift Akış	Support
Oynatma Çözünürlüğü	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Senkronize yeniden oynatma	16-ch
Ağ yönetim
Uzak Bağlantı	128
Ağ Protokolleri	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Sabit Disk Sürücü
Arayüzü Türü	1 SATA Interface
Kapasite	Up to 6 TB capacity for each disk
Harici Arayüzü
Ağ Arayüzü	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Arayüzü	1 USB 2.0 Interface & 1 USB 3.0 Interface
Seri bağlantı Arayüzü	1; standard RS-485 serial interface, half-duplex
Genel
Güç Kaynağı	12 VDC
Tüketim	≤ 25W(without hard disks)
Çalışma Sıcaklığı	-10 ºC to +55 ºC (14 ºF to 131 ºF)
Çalışma Nem oranı	10% to 90%
Boyutlar	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Ağırlık	≤ 2 kg (4.4 lb)
