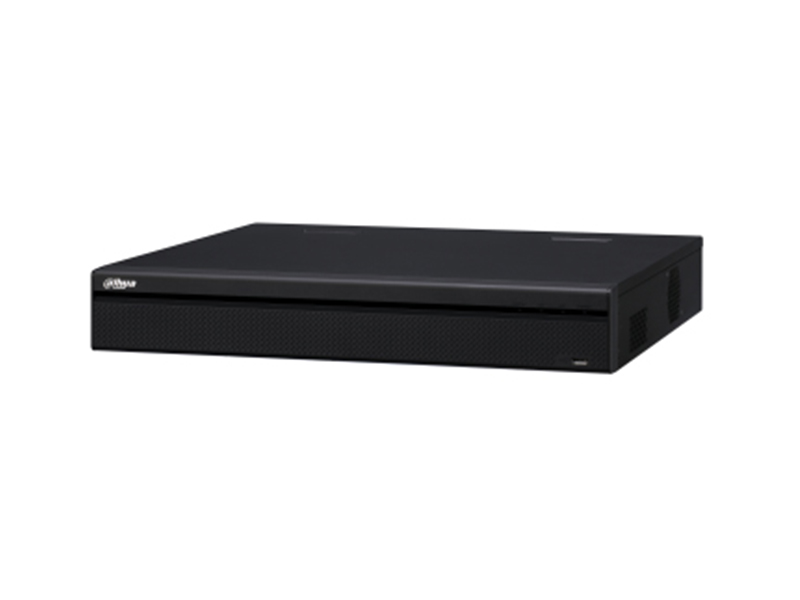

Dahua XVR5208AN 4KL 8P HDCVI Kayıt Cihazı

Özellikler

Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/AHD/TVI/CVBS/IP video inputs
Max 12/24 channels IP camera inputs, each channel up to 8MP; Max 48/96Mbps Incoming Bandwidth
Smart Search and Intelligent Video System
Note: HDCVI PoC system temporarily does not support balun accessing and UTP transmission.

Teknik Özellikler

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video and Audio
Analog Camera Input	8/16 Channel, BNC
HDCVI Camera	4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera	5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera	5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera	PAL/NTSC
PoC Camera Input	Supports HDCVI PoC Camera
IP Camera Input	8+4/16+8 Channel, each channel up to 8MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	H.264+/H.264
Resolution	4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate	Main stream: 4K(1-7fps); 6MP(1-10fps); 5MP(1-12fps); 4MP/3MP(1-15fps); 1080P/720P/960H/D1/CIF/QCIF (1-25/30fps)
	Sub steram:960H(1~15fps);
	D1/CIF/QCIF(1-25/30fps)
Bit Rate	1Kbps - 8192Kbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 - 60 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec
Display
Interface	8CH:1 HDMI, 1 VGA
Interface	16CH: 1 HDMI, 1 VGA, 1 TV
Resolution	HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
Resolution	VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	When IP extension mode not enabled:
	8CH: 1/4/8/9
	16CH: 1/4/8/9/16
	When IP extension mode enabled:
	8CH: 1/4/8/9/16
	16CH: 1/4/8/9/16/25
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	1 RJ-45 Port (1000M)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input	N/A
Relay Output	N/A
Playback and Backup
Playback	8CH: 1/4/9
Playback	16CH: 1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	2 SATA Ports, up to 6TB capacity for each disk
eSATA	N/A
Auxiliary Interface
USB	2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232	N/A
RS485	1 Port, for PTZ Control
Electrical
Power Supply	8CH: DC48V/2A
	16CH: DC48V/2.5A
Power Consumption	8CH: <10w hdd="" hari="" --10w--="">
Power Consumption	16CH: <20w hdd="" hari="" --20w--="">
Construction
Dimensions	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Net Weight	2kg (4.41lb) (without HDD)
Gross Weight	3.62kg (7.98lb)
Installation	Desktop installation
Environmental
Operating Conditions	-10°C - +55°C (+14°F - +131°F), 0- 90% RH
Storage Conditions	-20°C - +70°C (-4°F - +158°F) , 0- 90% RH
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications	FCC: Part 15 Subpart B
	CE: CE-LVD: EN 60950-1/IEC 60950-1
	CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
	UL: UL 60950-1
