Açıklama

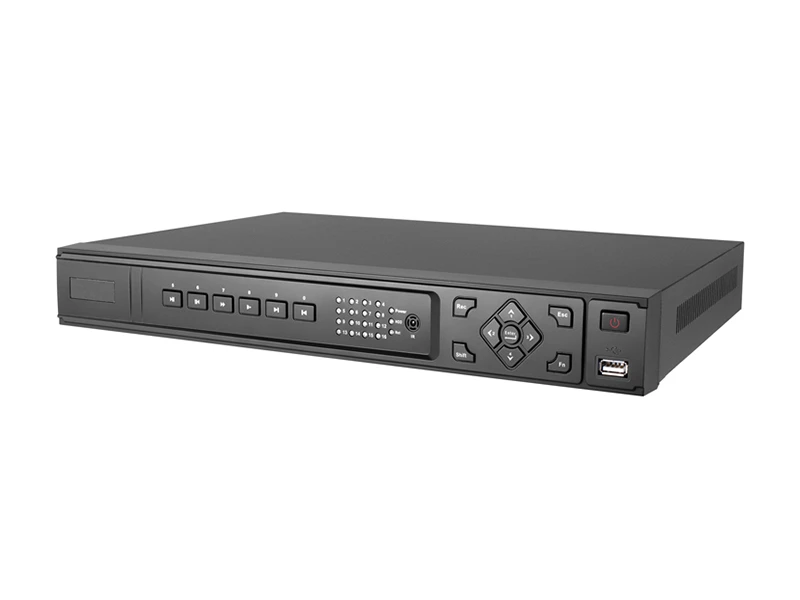

Neutron NVR3204 P NVR Kayıt Cihazı

Özellikler

Up to 4 channel 1080P cameras realtime live view
H.264/MJPEG dual codec decoding
Max 120fps 1080p, 240fps 720p,480fps D1 preview & recording
HDMI / VGA simultaneous video output
All channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Neutron, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
ONVIF Version 2.0 conformance
3D intelligent positioning with Neutron PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB2.0
Support IPC UPnP, 4 PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video
IP Camera Input	4 channel
Two-way Talk	1 channel Input, 1 channel Output, BNC
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1.Nis
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Record Rate	400/480fps D1, 200/240fps 720P , 100/120fps 1080P>
Bit Rate	48 ~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	4 channel
Relay Output	3 channel
Playback & Backup
Sync Playback	1 / 4 / 9
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / Network
Network
Ethernet	RJ-45 port (10/100M/1000M)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	2 SATA ports (2HDDs or 1HDDs+1CD/DVD-RW), up to 8TB
Auxiliary Interface
USB	2 ports (1 Rear), USB2.0
RS232	1 port, For PC communication & Keyboard
RS485	1 port, For PTZ control
General
Power Supply	NVR: DC12V
Power Supply	PoE Switch: DC48V
Power Consumption	NVR: 20W(without HDD)
Power Consumption	PoE Port: Max.15 (each)
Working Environment	-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension	1U, 375mm×285mm×50mm
(W×D×H)
Weight	2.3KG(without HDD)
