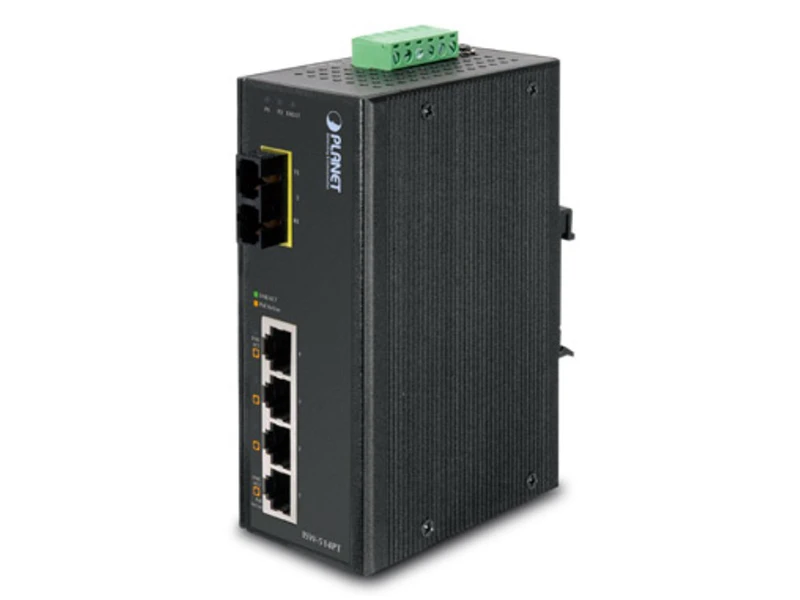

Planet ISW 514PT15 10/100 PoE Switch

Teknik Özellikler

Donanım Özellikleri
10/100Base-TX Pot 4
100Base-FX Por 1
Fiber Port Type ISW-514PT:Multi-Mode
ISW-514PT15:Single Mode
ISW-514PTF:Vary on SFP
Connector Type ISW-514PT:SC
ISW-514PT15:SC
ISW-514PTF:LC
Maximum Distance ISW-514PT:2km
ISW-514PT15:15km
ISW-514PTF:Vary on SFP
Optical Frequency ISW-514PT:1300nm
ISW-514PT15:1310nm
ISW-514PTF:Vary on SFP
Launch Power (dBm) ISW-514PT:Max.: -14  Min.: -20
ISW-514PT15:Max.: 0  Min.: -20
ISW-514PTF:Vary on SFP
Receive Sensitivity (dBm) ISW-514PT:-32
ISW-514PT15:-32
ISW-514PTF:Vary on SFP
IEEE 802.3af PoE ports 4
Dimension (D x W x H) 135 x 87.8 x 56 mm
Weight 842g
Power LED Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK/ACT
Port 5: LNK/ACT
Power Requirement 24 or 48 V DC, Redundant power with polarity reverse protection function
Installation DIN Rail kit and Wall Mount ear
Alarm Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment 1/2(+), 3/6(-)
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back Pressure for Half Duplex
IEEE 802.3x Pause Frame for Full Duplex
Switch fabric 1Gbps
Throughput (packet per second) 0.74Mpps
Network cables 10/100Base-TX:
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.)
EIA/TIA-568 100-ohm STP (100meters, max.)
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Temperature Operating: -40~75 Degree C
Storage: -40~85 Degree C
Humidity Operating: 5~90%, Storage: 5~90% (Non-condensing)

pdfPlanet ISW 514PT15 10/100 PoE Switch Pdf Dosyası951.86 KB

Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Wall Mount
PoE Port Sayısı : Tooltip 4 Port
Aktarım Türü : Gbit Fiber
Aktarım Port Sayısı : 1
Çalışma Mesafesi : 100Mt.
