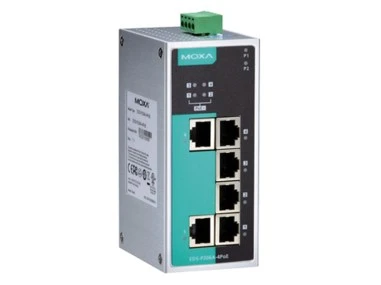

MOXA EDS P206A 4PoE S SC 10/100 Endüstriyel PoE Switch

Özellikler

IEEE 802.3af/at compliant PoE and Ethernet combo ports
Up to 30 watts per PoE port
12/24/48 VDC wide range redundant power inputs
Intelligent power consumption detection and classification
Redundant dual VDC power inputs
-40 to 75°C operating temperature range (T models)

Teknik Özellikler

Technology
Standards	IEEE 802.3af/at for Power-over-Ethernet
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X)
	IEEE 802.3x for Flow Control
Processing Type	Store and Forward
Switch Properties
MAC Table Size	2 K
Packet Buffer Size	768 Kbit
Interface
RJ45 Ports	10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports	100BaseFX ports (SC/ST connector)
PoE Pinout	V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
Optical Fiber
Table
Power Requirements
Input Voltage	12/24/48 VDC, redundant dual inputs
Operating Voltage	12 to 57 VDC
Input Current	5.55 A @ 24 VDC
Overload Current Protection	Present
Connection	1 removable 4-contact terminal block
Reverse Polarity Protection	Present
Power Consumption	Max. 13.2 W full loading without PDs' consumption
Power Budget	Max. 120 W for total PDs’ consumptionMax. 30 W for each PoE port
Physical Characteristics
Housing	Metal
IP Rating	IP30 protection
Dimensions	50.3 × 114 × 70 mm (1.98 x 4.53 x 2.76 in)
Weight	375 g (0.83 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	Standard Models: -10 to 60°C (14 to 140°F)
Operating Temperature	Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Note	Please check Moxa’s website for the most up-to-date certification status.
Safety	UL 508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-6 CS: Signal: 10 V
	IEC 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF (mean time between failures)
Time	1,398,743 hrs
Standard	Telcordia (Bellcore), GB
