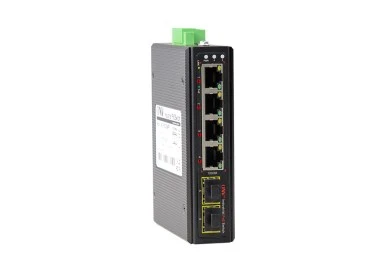

ONV ONV-IPS33064P-bt Endüstriyel PoE Switch

Özellikler

Unmanaged bt industrial PoE switch with 6*10/100/1000M RJ45 ports.
Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at.
It can support dual DC redundant power input and DIN rail mounting

Teknik Özellikler

Model	ONV-IPS33064P-bt
Interface Characteristics
Fixed Port	4*10/100/1000M bt PoE ports (Data /Power)
	2*10/100/1000M uplink RJ45 ports (Data)
	2 groud of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port	10/100/1000Base-TX auto-sensing,full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T
	IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	12Gbps (Non-blocking)
Forwarding	8.93Mpps
Rate@64byte
MAC	2K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (green), network: Link (yellow), PoE: PoE (green)
PoE & Power
PoE Port	Port 1 to 4 @bt POE and backward compatible with IEEE802.3af/at
Power Supply Pin	Defaul 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
Max Power Per Port	95W; IEEE802.3af/at/bt
Total PWR / Input Voltage	240W / (DC48-57V)
Power Consumption	Standby<6W, Full Load<240W
Input Voltage / Interface	48-57VDC, 5P industrial phoenix terminal, anti-reverse protection
Power Supply	No, optional 48V/240W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-20~+75°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C;5%~95% RH Non condensing
Dimension (LWH)	11910030mm
Net /Gross Weight	<0.5kg /<1.2kg
Installation	Desktop, 35mm DIN rail mounting
Certification & Warranty
Lightning protection / protection level	Lightning protection: 6KV 8/20us; Protection level: IP40
	IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
	IEC61000-4-3(RS):10V/m(80~1000MHz)
	IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
	IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
	IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
	IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
	IEC61000-4-9(pulsed magnet field):1000A/m
	IEC61000-4-10(damped oscillation):30A/m 1MHz
	IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
	IEC61000-4-16(common-mode transmission):30V; 300V,1s
	FCC Part 15/CISPR22(EN55022):Class A
	IEC61000-6-2(Common Industrial Standard)
Mechanical Properties	IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)
Certification	CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.
