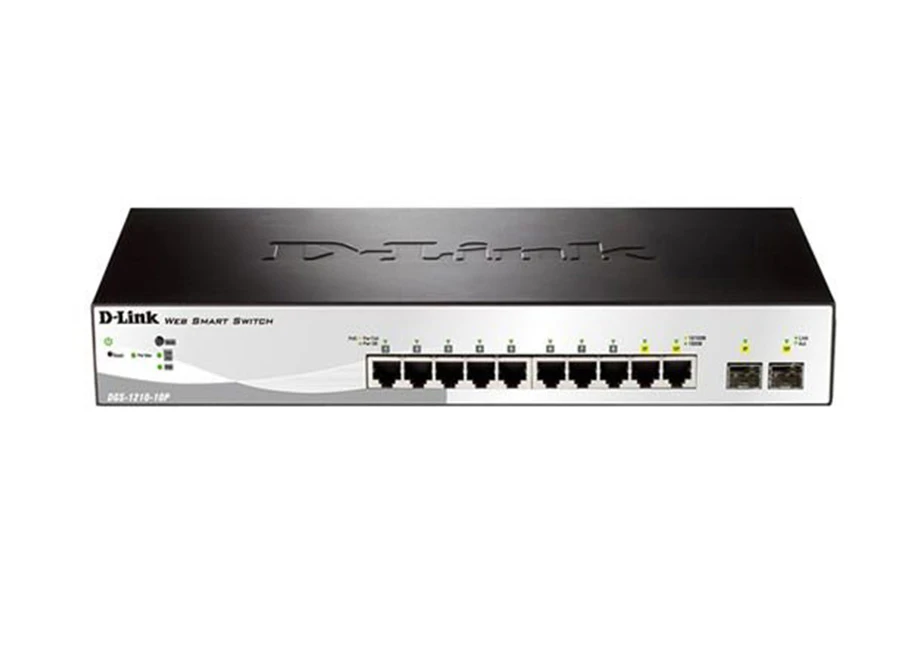

D-link DGS 1210 10P/B PoE Switch
Teknik Özellikler
| DGS-1210-10P / B | DGS-1210-10P / C | |
| Hardware | ||
| Interfaces | 8 PoE ports 10/100 / 1000Base-T, | 8 PoE ports 10/100 / 1000Base-T, |
| 2 combo port 100 / 1000Base-T / SFP | 2-port 1000Base-X SFP | |
| Indicators | Power | |
| Link / Active / Speed | ||
| The console port | - | - |
| Performance | ||
| Switching matrix Gb / s | 20 | |
| Speed forwarding 64-byte packets, Mpps | 14.88 | |
| MAC-address table | 16K | |
| SDRAM for the CPU | 128 MB | |
| Packet buffer | 1 MB | 1.5 MB |
| Flash-memory | 16 MB | |
| PoE | ||
| Standart PoE | 802.3af | |
| 802.3at | ||
| PoE power | ||
| to 15,4W | - | |
| up to 30W | Ports 1-8 | |
| Budget PoE | 78W | |
| Software | ||
| Features 2 levels | ||
| Spanning Tree Protocols | ||
| 802.1D STP | + | + |
| 802.1w RSTP | + | + |
| 802.1s MSTP | - | - |
| BPDU Filtering | - | - |
| Root restriction | + | + |
| Loopback Detection is | + | + |
| Link Aggregation 802.3ad | Max. 14 groups | |
| 8 ports per group | ||
| Port Mirroring | Group 1 | |
| One-to-One | + | + |
| Many-to-One | + | + |
| Multicast Layer 2 | ||
| IGMP Snooping | 256 groups | |
| IGMP v1, v2 | + | + |
| IGMP v3 awareness | - | + |
| IGMP snooping Fast Leave-based VLAN / unit | + | + |
| Report Suppression | - | - |
| MLD Snooping | - | 256 groups |
| MLD v1, v2 | - | + |
| MLD v2 awareness | - | - |
| VLAN | ||
| 802.1Q Tagged VLAN | 256 groups | |
| Port-based VLAN | - | + |
| Asymmetric VLAN | + | + |
| Auto Surveillance VLAN | + | + |
| Auto Voice VLAN | + | + |
| GVRP | - | - |
| VLAN Trunking | - | - |
| Double VLAN (Q-in-Q) | - | - |
| ISM VLAN | - | - |
| Features 3 levels | ||
| IPv6 Neighbor Discovery (ND) | + | + |
| ARP | - | - |
| Quality of service (QoS) | ||
| Bandwidth Management | incoming / outgoing traffic | |
| On the basis of the port | increments of 64 kbit / s | |
| Based on the flow (in increments of 64 Kbit / s) | - | - |
| Processing Queue | 4 queues per port | 8 queues per port |
| Strict Priority | + | + |
| Weighted Round Robin (WRR) | + | + |
| Strict + WRR | - | - |
| CoS based on: | ||
| Port Switch | - | - |
| 802.1p Priority Queues | + | + |
| VLAN ID | - | - |
| MAC-address | - | - |
| Ether type | - | - |
| ToS | + | + |
| DSCP | + | + |
| Protocol type | - | - |
| TCP / UDP port- | + | + |
| Access Control Lists (ACL) | ||
| ACL, the access rules | 200 | 768 |
| ACL-based | ||
| Port Switch | + | + |
| 802.1p priority | + | + |
| VLAN ID | + | + |
| MAC-address | + | + |
| Ether type | - | + |
| TOS | - | - |
| IPv4-address | + | + |
| IPv6-Address | - | - |
| DSCP | + | + |
| protocol type | - | + |
| number TCP / UDP port | - | + |
| IPv6 traffic class | + | + |
| ACL schedule | - | - |
| Statistics ACL | - | - |
| Filtering CPU interface | - | - |
| AAA | ||
| 802.1X | Based Access Control Port | |
| Assigning a policy Identity-driven (VLAN, ACL, QoS) | - | - |
| Support for EAP, OTP, TLS, TTLS, PEAP | + | + |
| Guest VLAN | - | - |
| Maintaining RADIUS accounting | - | - |
| 4-level user account | - | - |
| Supports MD5 authentication | - | + |
| Security | ||
| SSH v2 | - | + |
| SSL | + | + |
| Port Security | Up to 64 MAC-addresses per port | |
| Protection from the broadcast / multicast / unicast storm | + | + |
| Segmenting traffic | - | + |
| IP-MAC-Port Binding (IMPB) | Checking packages ARP / IP packets | |
| DHCP Snooping | + | + |
| D-Link Safeguard Engine | + | + |
| DHCP Server Screening | + | + |
| Filtering DHCP-enabled clients | - | + |
| Preventing ARP Spoofing Attacks | + | + |
| Preventing attacks BPDU | - | - |
| Preventing DoS attacks | - | + |
| TLS | - | - |
| OAM | ||
| Diagnosis cable | + | + |
| 802.3ah Ethernet Link OAM | - | - |
| 802.3ah D-Link Unidirectional Link Detection (DULD) | - | - |
| Control | ||
| Web-based interface | + | + |
| Simplified command-line interface (Simple CLI, 12 teams) | + | + |
| The command line interface (CLI) | - | - |
| SmartConsole | + | - |
| D-Link Network Assistant | - | + |
| Telnet-server (IPv6) | + | + |
| Telnet-server / client (IPv4) | + | + |
| Telnet-server / client (IPv6) | - | - |
| TFTP-client (IPv6) | + | + |
| SNMP v1 / v2c / v3 | + | + |
| SNMP Traps | + | + |
| Syslog | + | + |
| RMON v1 | + | + |
| RMON v2 | - | - |
| Support groups ProbeConfig | - | - |
| LLDP | + | + |
| BootP / DHCP-Client | + | + |
| DHCP automatically | - | + |
| DHCP Relay | - | - |
| DHCP Relay Option 12 | - | - |
| DHCP Relay Option 82 | - | - |
| Adding tags PPPoE Circuit-ID | - | - |
| Monitoring CPU | - | - |
| Team debugging | - | - |
| SNTP | + | + |
| Password recovery | - | - |
| Password encryption | - | - |
| Password Bypass | - | - |
| Trusted Host | + | + |
| Changing the configuration file using CLI syntax | - | - |
| Technology D-Link Green 3.0 | ||
| Energy savings | + | + |
| Turning off the indicators / port | + | + |
| Sleep | + | + |
| Physical parameters | ||
| Sizes | 330 x 180 x 44 mm | 280 x 126 x 44 mm |
| Width | 13" | eleven" |
| Height | 1U | |
| terms of Use | ||
| MTBF (hours) | 205249 | 360844 |
| Noise level | To 0 dB | |
| Thermal | 330.96 BTU / hr | 352.63 BTU / hr |
| Input supply | 100-240 VAC, 50/60 Hz | |
| Max. Power consumption (without PoE) | 12.5 W | 13.59 W |
| Ventilation system | Passive | |
| Built-in protection against static electricity | - | - |
| Storage temperature | from -10 to 70 ° C | from -20 to 70 ° C |
| Working temperature | from 0 to 40 ° C | -5 to 50 ° C |
| Humidity, non-condensing | from 5% to 95% | from 0% to 95% |
| Other | ||
| EMI | FCC Class A, CE Class A, ICES-003, VCCI, Class A, C-Tick, BSMI | |
| Security | CE LVD, UL / cUL | |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
