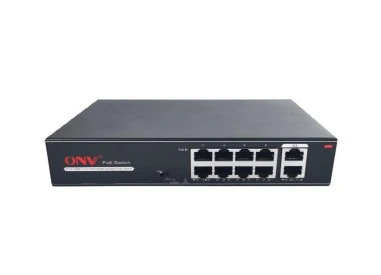

ONV ONV-H1108PL PoE Switch

Özellikler

Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports.
Port 1-8 can support IEEE802.3af/at PoE standard.
Adjust function switch, Port 1-8 can support 10M/250m transmission.
Built-in 120W power supply.

Teknik Özellikler

Model	ONV-H1064PL	ONV-H1108PL
Interface Characteristics
Fixed Port	4*10/100Base-TX PoE ports (Data/Power)	8*10/100Base-TX PoE ports (Data/Power)
	2*10/100Base-TX uplink RJ45 ports (Data)	2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port	Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch	1*(Extend+VLAN)
	Note:When the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission	10BASE-TX: Cat5 or later UTP(≤250 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.6Gbps (Non-blocking)	2Gbps (Non-blocking)
Forwarding Rate@64byte	0.98Mpps	1.488Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	9.6K
LED Indicator	Power:PWR (Green), network : L/A(Yellow), PoE : PoE (Green)
	Functional switch: EXTEND (Green)
PoE & Power Supply
PoE Port	Port 1 to 4	Port 1 to 8
Power Supply Pin	Default 1/2(+), 3/6(-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR / Input Voltage	65W/ (AC100-240V)	120W/ (AC100-240V)
Power Consumption	Standby<3W, Full load <65W	Standby <5W, Full load <120W
Power Supply	Built-in power supply, AC100~240V 50-60Hz 1A	Built-in power supply, AC100~240V 50-60Hz 2.2A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	14011540mm	19513040mm
Net /Gross Weight	<0.6kg / <1kg	<0.8kg / <1.2kg
Installation	Desktop, wall-mounted
Certification & Warranty
Lightning Protection / Protection Level	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN60950
	FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
