Açıklama

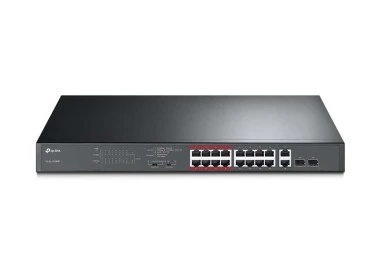

DCN ES1218P POE 1000M PoE Switch

Meeting IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x;
Supporting IEEE802.3af and IEEE802.3at standards; single port power dissipation up to 30W; total power dissipation output up to 240W;
Supporting free switchover among Default mode, Port Isolation mode and Extend mode;
Flow control mode: full duplex (IEEE 802.3x standard), half duplex (Backpressure standard);
Supporting self MAC address learning;
Sixteen 10/100/1000Mbps adaptive RJ45 ports, supporting Auto MDI/MDIX;
Two 100/1000Mbps optical adaptive ports;
Dynamic LED indicator lamp, providing simple working conditions prompt and troubleshooting
Built-in power supply with exquisite structure, which ensure user-friendliness.

PoE : PoE

Yönetilebilirlik : Yönetilemez

Aktarım Port Sayısı : 2

Aktarım Türü : Gbit Fiber

Port Hızı : 1 GBit

PoE Port Sayısı : Tooltip

16 Port

Standard and protocol		IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af
Port		Sixteen 10/100/1000Mbps adaptive RJ45 ports (Auto MDI/MDIX), two 100/1000Mbps SFP ports
Network media		10Base-T: cat3 UTP or above
		100Base-TX: cat5 UTP
		1000Base-T: cat5e UTP
		1000Base-SX:62.5μm/50μm MMF(2m-550m)
		1000Base-LX:62.5μm/50μm MMF (2m-550m) Or 10μm SMF (2m-5000m)
Transmission mode		Storage – forwarding
MAC address capacity		8K
Switching capacity		36Gbps
Packet forwarding rate		26.784Mpps
Package cache		4.1Mbit
Jumbo frame		9216Bytes
PoE port (RJ45)		16 port which meet IEEE802.3at/af standard
Power supply pin		1/2(+),3/6(-)
PoE output power		Max. 240W
Working mode	Default mode	All ports may intercommunicate.
	10M Extend mode	The speed at ports 1-8 decreases to 10Mbps, the maximum transmission distance is 250m, and all ports may intercommunicate.
	Extend mode	The speed at ports 1-8 decreases to 10Mbps, the maximum transmission distance is 250m, and all ports may intercommunicate
