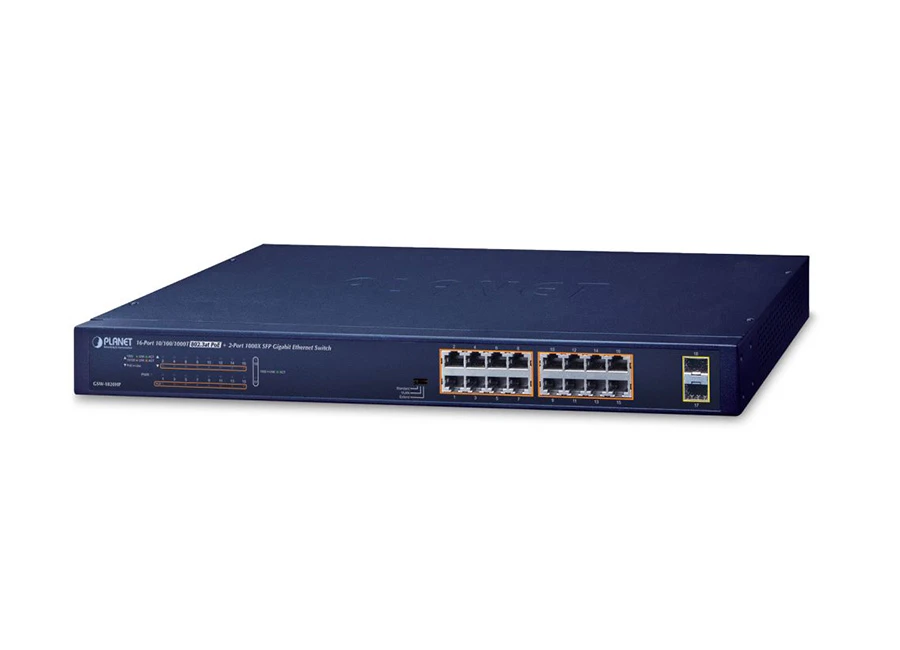

Planet GSW-1820HP PoE Switch
Özellikler
Physical Port
- 16-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
- 2 1000BASE-X mini-GBIC/SFP slots
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 16 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port, all power up to 240W PoE budget.
- Each port supports 52V DC power to PoE powered device
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K jumbo frame supports all speeds (10/100/1000Mbps)
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection;
-VLAN mode: Ports 1 to 14 cannot communicate with each other, but can communicate with the uplink ports 15 to 16 and SFP ports 17 to 18
-Extend mode: Ports1 to 8 have data rate of 10Mbps. The farthest transmission distance up to 250 meters and all ports can communicate with each other. - The DIP switch can isolate ports to prevent broadcast storm and defend DHCP spoofing
- Automatic address learning and address aging
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware
- 19-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- Ethernet Link Energy-saving technology
-Link down power savings
-Intelligent use of power based on cable length
Teknik Özellikler
| Hardware Specifications | |
| 10/100/1000BASE-T Copper Ports | 16 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE+ Injector Port | 16 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| DIP Switch | Selectable operation mode |
| Standard | |
| VLAN | |
| Extend | |
| Dimensions (W x D x H) | 440 x 208 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.67kg |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 270 watts/921 BTU |
| Thermal Fan | 2 |
| Protection | 6KV surge protection |
| 8KV ESD protection | |
| LED Indicators | System |
| Power (Green) | |
| 10/100/1000T RJ45 Interfaces | |
| 1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber) | |
| 1000X SFP Interfaces | |
| 1000 LNK / ACT (Green) | |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64bytes | 26.8Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| Backward compatible with IEEE 802.3af Power over Ethernet | |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
| PoE Power Budget | 240 watts |
| Number of PDs, 7 watts | 16 |
| Number of PDs, 15.4 watts | 15 |
| Number of PDs, 30 watts | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3az Energy-Efficient Ethernet | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
Planet GSW-1820HP PoE Switch Pdf Dosyası2.65 MB
Planet GSW-1820HP PoE Switch Kullanım Kılavuzu (ing) Pdf Dosyası1.75 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 100Mt.
PoE Port Sayısı :
16 Port
16 Port PoE Güç Bütçesi : 200-400 Watt
