| Capacity |
| Type: IPv4 routes |
| Value: 24000 |
| Type: NetFlow entries |
| Type: Switched virtual interfaces (SVIs) |
| Value: 1000 |
| Type: Virtual interfaces (VLANs) |
| Value: 4000 |
| Dimensions & Weight |
| Depth: 19.2 in |
| Height: 1.8 in |
| Weight: 17.64 lbs |
| Width: 17.5 in |
| Environmental Parameters |
| Humidity Range Operating: 10 - 95% (non-condensing) |
| Max Operating Temperature: 113 °F |
| Max Storage Temperature: 158 °F |
| Min Operating Temperature: 23 °F |
| Min Storage Temperature: -40 °F |
| Flash Memory |
| Installed Size: 2 GB |
| Header |
| Brand:Cisco |
| Compatibility:PC |
| Manufacturer: Cisco Systems |

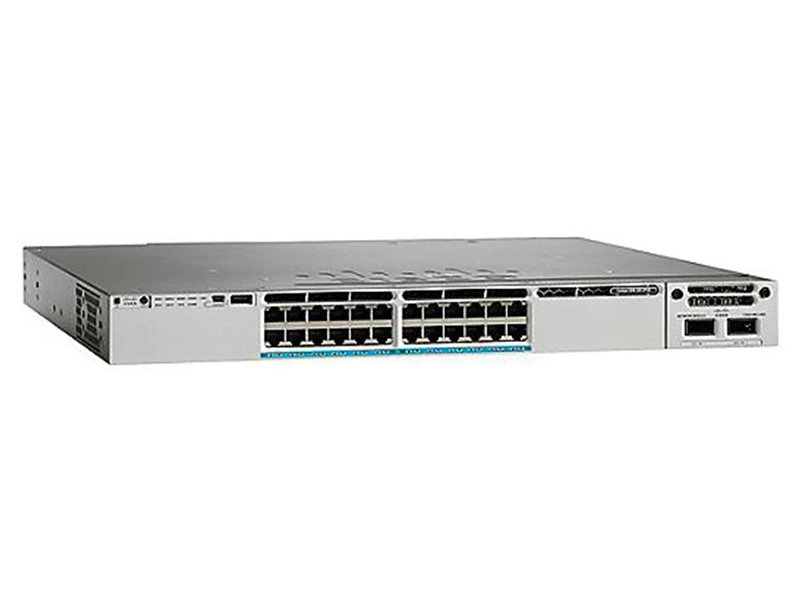

| Model: 3850-24XU-E |
| Packaged Quantity: 1 |
| Product Line: Cisco Catalyst |
| Interface Provided |
| Comments:UPOE |
| Connector Type: RJ-45 |
| PoE Power: 60 W |
| Qty: 12 |
| Type: 1000Base-T |
| Type: 1/2.5/5/10GBase-T |
| Connector Type: Type A |
| Qty: 1 |
| Type: USB |
| Connector Type: Type B |
| Type: Management (mini-USB) |
| Comments: Management |
| Type: Console |
| Type: Management (Gigabit LAN) |
| Qty: 2 |
| Type: Network stack device |
| Miscellaneous |
| Authentication Method: Kerberos , RADIUS , Secure Shell (SSH) , TACACS+ |
| Color Category: Gray |
| Compliant Standards: AS/NZS 3548 Class A , AS/NZS CISPR 22 , BSMI Class A , CAN/CSA C22.2 No. 60950-1 , CCC , CISPR 22 Class A , CISPR 24 , CNS 13438 , EN 300386 , EN 55022 Class A , EN 55024 , EN 60950-1 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-6-1 , EN50082-1 , FCC CFR47 Part 15 , FCC Part 15 A , ICES-003 Class A , IEC 60950-1 , IEC 60950-1 Second Edition , KCC , KN22 Class A , KN24 , NOM , RoHS 5/6 , UL 60950-1 , UL 60950-1 Second Edition , VCCI Class A |
| Height (Rack Units): 1 |
| MTBF: 203,150 hours |
| Networking |
| Advanced Switching: Layer 3 |
| Compliant Standards: IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3u , IEEE 802.3x |
| Connectivity Technology: Wired |
| Features:802.1x authentication , Access Control List (ACL) support , ARP inspection , ARP support , Bridge protocol data unit (BPDU) , Cisco StackPower technology , Cisco StackWise-480 technology , Control plane protection (CoPP) , DHCP snooping , DHCP support , Dynamic Trunking Protocol (DTP) support , Energy Efficient Ethernet , Link Aggregation Control Protocol (LACP) , Multiple Spanning Tree Protocol (MSTP) support , PIM snooping , Port Aggregation Protocol (PAgP) support , Quality of Service (QoS) , Radio resource management (RRM) , Rapid Per-VLAN Spanning Tree Plus (PVRST+) , Remote Switch Port Analyzer (RSPAN) , Shaped Round Robin (SRR) , SSH support , Syslog support , Trivial File Transfer Protocol (TFTP) support , Uni-Directional Link Detection (UDLD) , Virtual Yol Tarifi Göster Forwarding-Lite (VRF-Lite) , Virtual Routing and Forwarding (VRF) , VLAN Trunking Protocol (VTP) , Weighted Tail Drop (WTD) |
| Form Factor: Desktop , Rack-mountable |
| Jumbo Frame Support: 9198 bytes |
| MAC Address Table Size: 32000 entries |
| Manageable: Yes |
| PoE Budget: 580 W |
| Ports Qty:24 |
| Power Over Ethernet (PoE): UPOE |
| Remote Management Protocol: CLI , RMON 1 , RMON 2 , SNMP 1 , SNMP 2c , SNMP 3 , SSH , Telnet , TFTP |
| Routing Protocol: BGP-4 , EIGRP , EIGRP for IPv6 , IGMP , IGMPv2 , IGMPv3 , IS-IS , MLD , MLDv2 , OSPF , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , Policy-based routing (PBR) , RIP-1 , RIP-2 , RIPng |
| Stackable: Stackable |
| Status Indicators: Active , PoE , Port duplex mode , Port transmission speed , Power , Status , System |
| Subcategory: Network hubs and switches |
| Subtype: Gigabit Ethernet |
| Type: Switch |
| Performance |
| Type: Switching capacity |
| Value: 2 Gbps |
| Type: Stacking bandwidth |
| Value:480 Gbps |
| Type: Forwarding performance (64-byte packet size) |
| Value: 460 Mpps |
| Ports |
| Qty: 24 |
| Type:10/100/1000 (UPOE) |
| Power Device |
| Frequency Required: 50 - 60 Hz |
| Installed Qty: 1 |
| Max Supported Qty: 2 |
| Nominal Voltage: AC 120/230 V |
| Power Provided: 1100 Watt |
| Power Redundancy: Optional |
| Power Redundancy Scheme: 1+1 (with optional power supply) |
| Type: Internal power supply |
| RAM |
| Installed Size: 4 GB |
| Service |
| Support Details Full Contract Period: Lifetime |
| Support Details Service Included: Advance parts replacement |
| Support Details Type: Limited warranty |
| Support Details Full Contract Period: 90 days |
| Support Details Service Included: Consulting |
| Support Details Type: Technical support |
| Service & Support |
| Type: Limited lifetime warranty |
| Service & Support Details |
| Response Time: Next business day |
| Slot Provided |
| Free Qty: 1 |
| Total Qty: 1 |
| Type: Expansion slot |
| Software |
| Type: Cisco IOS IP Services |
