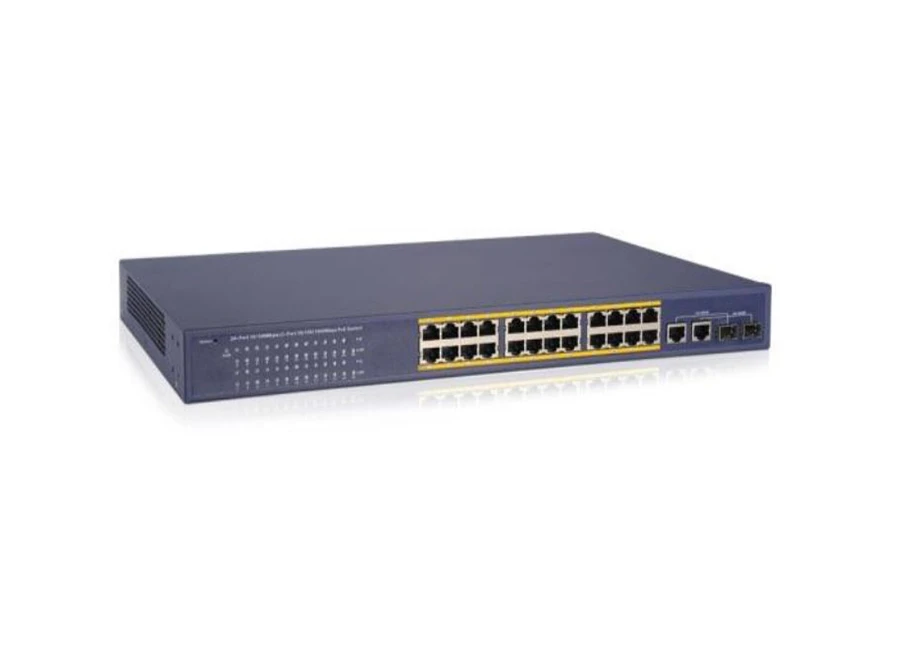

Dynacom DS5124P PoE Switch
Özellikler
- Dynacom 24 ports PoE Switches fill the gap between unmanaged and fully managed switches
- It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 3 manage ment implementation.
- This PoE-capable Switch,provides power and data using built-in IEEE 802.3af /at PoE on all 24 ports. In addition
- DS5124P offers an intuitive Web-based management tool for quick and easy deployment and configuration making ideal for deploying access points
- VoIP phones and IP-based surveillance camera
Teknik Özellikler
| Technology |
| Network Standards |
| IEEE802.3i l0BASE-T |
| IEEE802.3u l00BASE-TX |
| IEEE802.3x Flow Control |
| PoE power |
| 30W per port(IEEE802.3at) |
| Wiring: Data & power provided over pairs l/2 and 3/6 or 4/5 and 7/8 |
| Cable: UPT cat.5 or higher |
| Processing types |
| Store-and-forward |
| Half-duplex back pressure and IEEE 802.3x full- duplex flow control |
| Backplane 8.8Gbps |
| Buffer memory |
| 2.7MB embedded memory per unit |
| MAC Address |
| 4K |
| Network latency |
| Less than 20us for 64-byte frames in Store-and- forward mode for 100Mbps to 100Mbps transmission |
| Power Input |
| AC90-260V input |
| PoE power consumption |
| 30W /port |
| Power Budget |
| 450W |
| Mechanical Casing |
| Metal case |
| Dimension |
| 440 x 315 x 44mm(LxWxH) |
| Weight |
| 3.5KG |
| Installation |
| Rackmount |
| LED Indicators |
| System:Power,PoE Maximum power |
| Per port: Link Activity Speed PoE active,PoE error |
| Environment specifications |
| Operating Temperature |
| -10~45°C |
| Storage Temperature |
| -10~70°C |
| Operating Humidity |
| 90% max relative humidity on-condensing |
| Storage Humidity |
| 90% max relative humidity on-condensing |
| Safety |
| CE/ROHs/FCC/WEEE |
| Warranty |
| 1 year |
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 400-800 Watt
