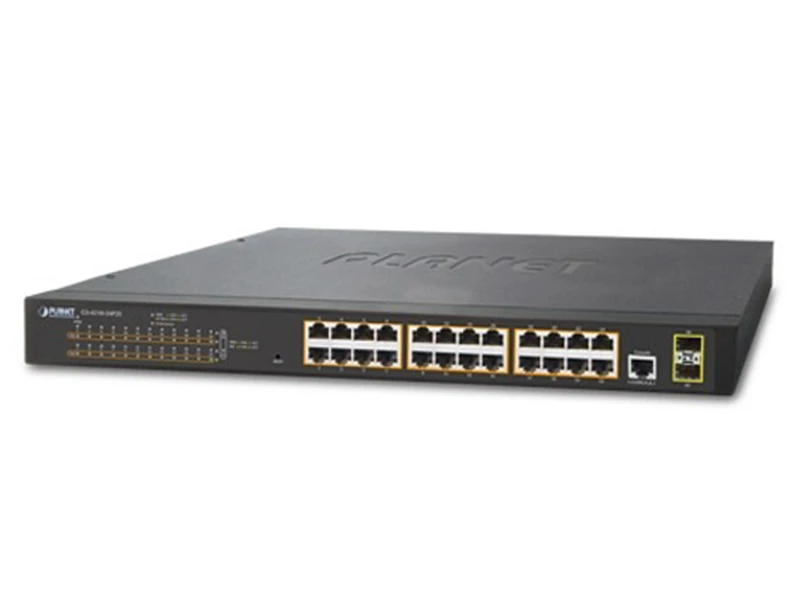

1000 PoE Switch

Teknik Özellikler

Hardware Specifications
Copper Ports	24 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X Ports
PoE Injector Port	24 802.3af / 802.3at PoE Injector Ports
SFP/mini-GBIC Slots	2 100/1000Base-X SFP interfaces, supporting 100/1000Mbps dual mode
Console	1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps / non-blocking
Switch Throughput@64 bytes	38.6Mpps @64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	9216 bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
LED	System:
	Power (Green)
	10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
	1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange)
	100/1000Mbps SFP Interfaces (Port 25 to Port 26):
	1000 LNK / ACT (Green), 100 LNK/ACT (Orange)
Thermal Fan	2
Power Requirements	100~240V AC, 50/60Hz, 4A (max.)
Power Consumption / Dissipation	Max. 330 watts / 1122 BTU
Dimensions (W x D x H)	445 x 207 x 45 mm (1U height)
Weight	2.8kg
Enclosure	Metal
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Standard	IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Output	Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
PoE Power Output	Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget	300 watts
Number of PDs, 7 watts	24
Number of PDs, 15.4 watts	19
Number of PDs, 30 watts	9
Layer 2 Functions
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	Protocol VLAN
Link Aggregation	IEEE 802.3ad LACP supports 8 groups of 16-port trunk and static trunk supports 8 groups of 8-port trunk
Spanning Tree Protocol	STP / RSTP / MSTP
Multicast	IGMP (v2/v3) Snooping
	IGMP Querier
	Up to 256 multicast groups
Access Control List	IPv4 IP-based ACL / MAC-based ACL / IPv4 IP-based ACE / MAC-based ACE
QoS	8 mapping ID to 8 level priority queues
	- Port Number
	- 802.1p priority
	- DSCP field in IP Packet
	Traffic classification based, Strict priority and WRR
Security	IEEE 802.1X – port-based authentication
	Built-in RADIUS client to co-operate with RADIUS server
	RADIUS / TACACS+ user access authentication
	MAC filter
	Static MAC address
	DHCP Snooping and DHCP Option82
	STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Management Functions
Basic Management Interfaces	RJ45 Console / Web browser / Telnet / SNMP v1, v2c, v3
	Firmware upgrade by HTTP / TFTP protocol through Ethernet network
	Remote / Local Syslog
	System log
	LLDP protocol
	SNTP
Secure Management Interfaces	HTTPs, SNMP v3
SNMP MIBs	RFC 3635 Ethernet-like MIB
	RFC 2863 Interface Group MIB
	RFC 2819 RMON (1, 2, 3, 9)
	RFC 1493 Bridge MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX/100Base-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000Base-T
	IEEE 802.3x Flow Control and Back pressure
	IEEE 802.3ad Port Trunk with LACP
	IEEE 802.1D Spanning Tree protocol
	IEEE 802.1w Rapid Spanning Tree protocol
	IEEE 802.1s Multiple Spanning Tree protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at High Power over Ethernet
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP version 1
	RFC 2236 IGMP version 2
	RFC 3376 IGMP version 3
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
