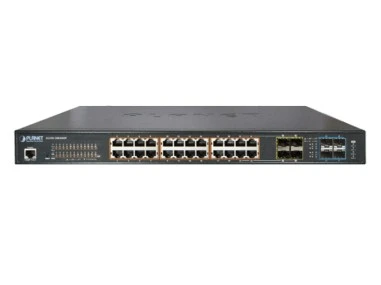

Planet PL SGS 6340 24P4S 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Copper Ports |
| 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
| 4 1000BASE-X SFP interfaces |
| PoE Injector Port |
| 24 ports with 802.3at/af PoE injector function with port-1 to port-24 |
| Console |
| 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| Switch Architecture |
| Store-and-forward |
| Switch Fabric |
| 56Gbps/non-blocking |
| Switch Throughput |
| 41.66Mpps |
| Address Table |
| 16K MAC address table with auto learning function |
| Shared Data Buffer |
| 1.5MB |
| Flow Control |
| Back pressure for half-duplex |
| IEEE 802.3x pause frame for full-duplex |
| Jumbo Frame |
| 9KB |
| LED |
| System: |
| PWR, SYS |
| Ports: |
| 10/100/1000T RJ45 Port: Button off: LNK/ACT, Button on: PoE In-Use |
| 1000X SFP slot: LNK/ACT |
| Dimensions (W x D x H) |
| 442 x 330 x 44 mm, 1U height |
| Weight |
| 4503g |
| Power Consumption |
| 449 watts/1532.05 BTU (maximum) |
| Power Requirements |
| AC 100~240V, 50/60Hz |
| Fan |
| 3 |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af/802.3at PoE+ PSE |
| PoE Power Supply Type |
| End-span |
| PoE Power Output |
| Per port 54V DC, 33 watts (max.) |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 370 watts (max.) |
| PoE Ability PD @ 9 watts |
| 24 units |
| PoE Ability PD @ 15 watts |
| 24 units |
| PoE Ability PD @ 30 watts |
| 12 units |
| Management Function |
| System Configuration |
| Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3 |
| Management |
| Supports both IPv4 and IPv6 addressing |
| Supports the user IP security inspection for IPv4/IPv6 SNMP |
| Supports MIB and TRAP |
| Supports IPv4/IPv6 FTP/TFTP |
| Supports IPv4/IPv6 NTP |
| Supports RMON 1, 2, 3, 9 four groups |
| Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password |
| Supports IPv4/IPv6 SSH |
| The right configuration for users to adopt RADIUS server’s shell management |
| Supports CLI, console, Telnet |
| Supports SNMP v1, v2c and v3 |
| Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area |
| Supports Syslog server for IPv4 and IPv6 |
| Supports TACACS+ |
| Layer 3 Function |
| Routing Protocol |
| Static routing, RIP and OSPF |
| Routing Table |
| 128 |
| Layer 2 Function |
| Port Configuration |
| Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow control disable/enable |
| Bandwidth control on each port |
| Port loopback detect |
| Port Status |
| Display each port’s speed duplex mode, link status, flow control status and |
| auto negotiation status |
| VLAN |
| 802.1Q tagged based VLAN, up to 256 VLAN groups |
| 802.1ad Q-in-Q (VLAN stacking) |
| GVRP for VLAN management |
| Private VLAN Edge (PVE) supported |
| Protocol-based VLAN |
| MAC-based VLAN |
| IP subnet VLAN |
| Bandwidth Control |
| TX/RX/both |
| Link Aggregation |
| IEEE 802.3ad LACP/static trunk |
| Supports 128 groups with 8 ports per trunk group |
| QoS |
| 8 priority queues on all switch ports |
| Supports strict priority and Weighted Round Robin (WRR) CoS policies |
| Traffic classification: |
| - IEEE 802.1p CoS/ToS |
| - IPv4/IPv6 DSCP |
| - Port-based WRR |
| Multicast |
| IGMP v1/v2/v3 snooping |
| Querier mode support |
| MLD v1/v2 snooping |
| Querier mode support |
| Multicast VLAN Register (MVR) |
| Access Control List |
| Supports Standard and Expanded ACL |
| IP-based ACL/MAC-based ACL |
| Time-based ACL |
| Up to 512 entries |
| Bandwidth Control |
| At least 64Kbps step |
| Security |
| Supports MAC + port binding |
| IPv4/IPv6 + MAC + port binding |
| IPv4/IPv6 + port binding |
| Supports MAC filter |
| ARP scanning prevention |
| Authentication |
| IEEE 802.1x port-based network access control |
| AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS |
| SNMP MIBs |
| RFC 1213 MIB-II |
| RFC 1215 Internet Engineering Task Force |
| RFC 1271 RMON |
| RFC 1354 IP-Forwarding MIB |
| RFC 1493 Bridge MIB |
| RFC 1643 Ether-like MIB |
| RFC 1907 SNMP v2 |
| RFC 2011 IP/ICMP MIB |
| RFC 2012 TCP MIB |
| RFC 2013 UDP MIB |
| RFC 2096 IP forward MIB |
| RFC 2233 if MIB |
| RFC 2452 TCP6 MIB |
| RFC 2454 UDP6 MIB |
| RFC 2465 IPv6 MIB |
| RFC 2466 ICMP6 MIB |
| RFC 2573 SNMP v3 notify |
| RFC 2574 SNMP v3 vacm |
| RFC 2674 Bridge MIB Extensions |
| Standard Conformance |
| Regulatory Compliance |
| FCC Part 15 Class A, CE |
| Standards Compliance |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3z Gigabit 1000BASE-SX/LX |
| IEEE 802.3ab Gigabit 1000BASE-T |
| IEEE 802.3x flow control and back pressure |
| IEEE 802.3ad port trunk with LACP |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.1s Multiple Spanning Tree Protocol |
| IEEE 802.1p Class of Service |
| IEEE 802.1Q VLAN tagging |
| IEEE 802.1X port authentication network control |
| IEEE 802.1ab LLDP |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet PLUS |
| RFC 768 UDP |
| RFC 793 TFTP |
| RFC 791 IP |
| RFC 792 ICMP |
| RFC 2068 HTTP |
| RFC 1112 IGMP v1 |
| RFC 2236 IGMP v2 |
| RFC 3376 IGMP v3 |
| RFC 2710 MLD v1 |
| FRC 3810 MLD v2 |
| RFC 2328 OSPF v2 |
| RFC 1058 RIP v1 |
| RFC 2453 RIP v2 |
| Environment |
| Operating |
| Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
| Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 90% (non-condensing) |
Planet PL SGS 6340 24P4S 10/100/1000 PoE Switch Pdf Dosyası3.87 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : 10Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
