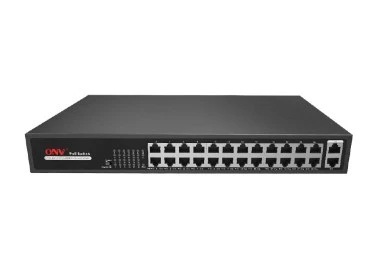

ONV ONV-POE31024PFA PoE Switch

Özellikler

Unmanaged PoE fiber switch with 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*1000M TP/SFP(combo port) ports. Port 1-24 can support IEEE802.3af/at.
Built-in 400W power supply.
Support 1U/19 inch cabinet installation.

Teknik Özellikler

Model	ONV-POE31024PFA
Interface Characteristics
Fixed Port	24*10/100Base-TX PoE ports (Data/Power)
	2*10/100/1000M uplink RJ45 ports (Data)
	2*1000M uplink SFP slot ports (combo port)
Ethernet Port	10/100Base-T(X) ,10/100/1000Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port	Gigabit SFP optical fiber interface, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0 ~ 550M, single-mode: 1310nm/ 0 ~ 40KM, 1550nm/ 0 ~ 120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
Network Protocol	IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	14.8Gbps (Non-blocking)
Forwarding Rate@64byte	6.55Mpps
MAC	16K
Buffer Memory	4M
Jumbo Frame	9.6K
LED Indicator	Power:PWR (Green), Network: Link, Link/Act (Yellow), POE:PoE(Green), Speed:1000M (Green)
PoE & Power Supply
PoE Port	Port 1 to 24 IEEE802.3af/at @ POE
Power Supply Pin	Default 1/2 (+), 3/6 (-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR / Input Voltage	400W(AC100-240V)
Power Consumption	Standby<20W, Full load<400W
Power Supply	Built in power supply.
Power Supply	AC100~240V 50-60Hz 5.0A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	44029044.5mm
Net /Gross Weight	<3.5kg/<4.2kg
Installation	Desktop, wall-mounted,19 inch 1U cabinet
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
