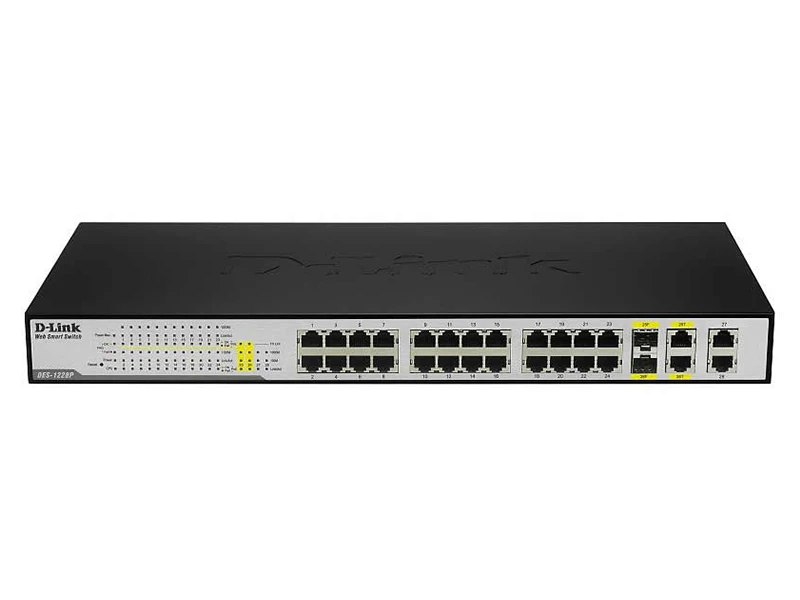

D-Link DES 1228P 10/100 PoE Switch
Teknik Özellikler
| Format & Standards |
| Format : Rackmount |
| Standards : IEEE 802.3 compliance |
| IEEE 802.3u compliance |
| IEEE 802.3x Flow Control support for Full-Duplex mode, Back Pressure when Half-Duplex mode |
| IEEE 802.3ab compliance |
| IEEE 802.3z compliance |
| IEEE 802.3u compliance |
| IEEE 802.3x Flow Control support for Full-Duplex mode, Back Pressure when Half-Duplex mode |
| Network Management Type : Smart |
| Ports & Interface |
| Uplink Ports : Yes |
| Uplink Interface : SFP |
| Primary Ports : 24 Port 10/100Mbps + 4 1000BASE-T + 2 Combo Ports & PoE |
| Primary Port Speed : 10/100Mbps + 1000Mbps |
| Data Transmission |
| MAC Address Table: 8K |
| Switching Method : Store and Forward |
| VLAN Support : Support 256 static VLAN groups, able to configure VID from 1-4094 |
| Jumbo Frames : No |
| Uplink Speed : SFP |
| Details |
| PoE : Yes |
| Stackable : No |
| SNMP : Yes |
| QoS : Yes |
| LACP : Yes |
| Layer : 2 |
| Port Mirroring : Yes |
| Module Support : Yes |
| Power : 100-240 VAC, 50/60Hz, internal universal power supply |
| Features |
| 24 Ports IEEE 802.3af PoE |
| Supports Industry Standards: 802.1p, 802.1Q, 802.1D |
| CPU DoS Protection to Ensure Uptime |
| Supports 802.1x User Authentication for Security |
| Easy Management through GUI , Smart Console Utility, and SNMP v1 |
| Dimensions & Weight |
| Dimensions : 17.0" x 4.3" x 1.7" |
| Weight : 7.2 lbs. |
| Environmental |
| Temperature : ºC to 40ºC (32ºF to 104ºF) |
| Humidity : 10%-90% RH |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
