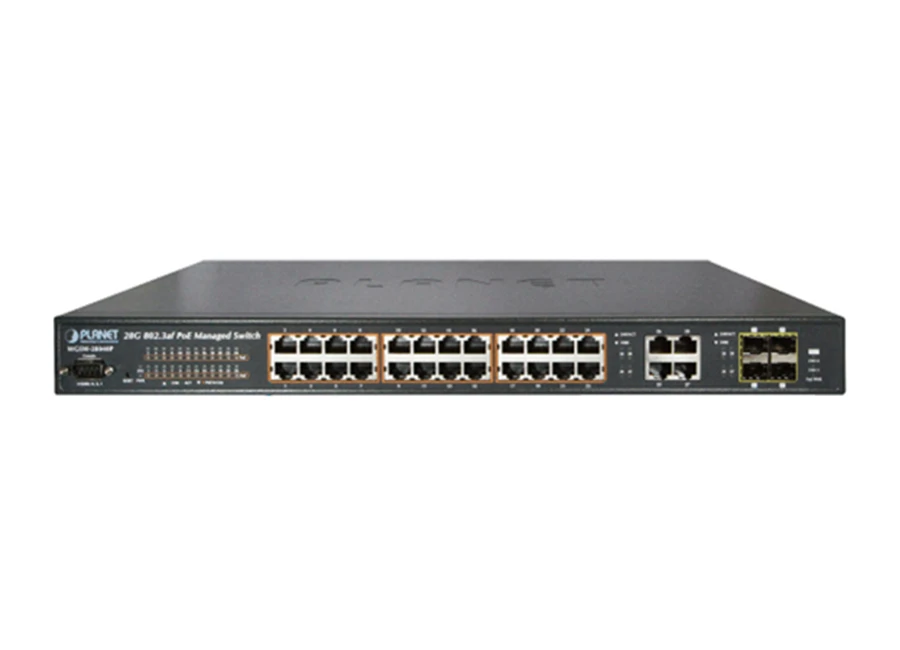

Planet WGSW 28040P4 10/100/1000 PoE Switch

Özellikler

• Donanım Versiyonu: Version 2
• Bakır Portlar: 28 10/100/1000Base-T RJ-45 Auto-MDI / MDI-X ports
• SFP/mini-GBIC Slot: 4 100/1000Base-X SFP interfaces, shared with Port-25 to Port-28
• Switch Processing Scheme: Store-and-Forward
• Switch Fabric: 56Gbps / non-blocking
• Throughput @ 64Kbytes: 41.67Mpps
• MAC Adres Tablosu: 16K entries
• Share Data Buffer: 448K bytes
• Akış Kontrolü: IEEE 802.3x Pause Frame for Full-Duplex,Back pressure for Half-Duplex
• Jumbo Frame: 9216 Bytes
• LED: PWR, SYS, LNK / ACT, PoE In-Use, 1000, PWR Alert, FAN 1 & 2 Alert
• Ölçüler (W x D x H): 440 x 300 x 44.5 mm, 1U height
• Ağırlık: WGSW-28040P: 3.9kg
• WGSW-28040P4: 4.3kg
• Güç Tüketimi: WGSW-28040P,Max.202 Watts/688.82 BTU, WGSW-28040P4,Max.398 Watts/1357.18 BTU
• Güç Gereksinimi: AC 100~240V, 50/60Hz
• ESD Koruma: 6KV DC
