Açıklama

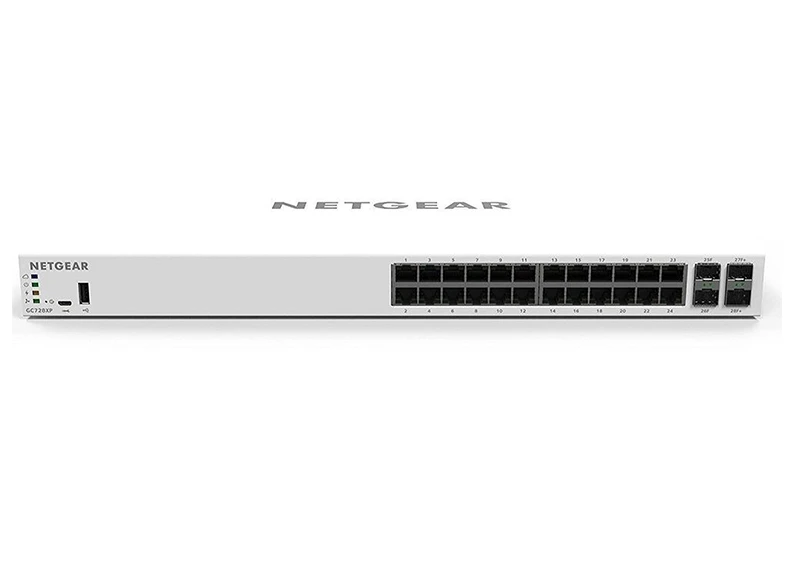

Netgear GC728XP PoE Switch
Teknik Özellikler
| Model Description |
| Insight Managed 28-Port Gigabit Ethernet PoE+ Smart Cloud Switch with 2 SFP and 2 SFP+ Fiber Ports |
| Gigabit copper ports |
| 24 |
| SFP / SFP+ 10G Ports |
SFP Ports: 2 (dedicated) 10G SFP+ Ports: 2 (dedicated) |
| Number of PoE/PoE+ ports |
| 24 PoE+ (802.3at) |
| Total PoE power budget (watts) |
| 390W |
| Bandwidth (full-duplex) |
| 92 Gbps |
| Buffer size (dynamically shared across ports in use) |
| 1.5 MB |
| MAC address database size (48-bit MAC addresses) |
| 16K |
| VLAN (number supported) |
| 256 |
| VLAN routing |
| Yes |
| Dynamic VLAN assignment |
| Yes |
| MLD Snooping |
| Yes |
| Static routes |
| 32 (IPv4) / 31 (IPv6) |
| Link Aggregation / Port Trunking |
| LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG |
| Number of LAGs & number of members |
| 24 LAGs with max 8 members in each LAG |
| Number of priority queues |
| 8 |
| Supported multicast groups |
| 512 |
| DoS prevention |
| Yes |
| Loop detection/prevention |
| Yes |
| Jumbo frame support |
| Up to 9K packets |
| EEE (IEEE 802.3az) |
| Yes |
| Power supply |
| Internal: 100-240VAC, 50-60Hz, 10A max (power cord localized to country of sale) |
| Max power consumption (Watts) |
| Max power (worst case, all ports used, line-rate traffic) (Watts): 47.1W (no PoE) / 437.1W (full PoE) |
| Fan(s) |
| 2 |
| Acoustic noise level @ 25°C (dBA) |
| 39 dBA |
| Operating temperature |
| ° to 50°C (32° to 122°F) |
| MTBF (@ 25°C) |
| 629,962 hrs (72 yrs) |
| Electromagnetic compliance (A or B) |
| Class A |
| Dimensions (W x D x H) |
| 440 x 224 x 44 mm (17.3 x 8.8 x 1.7 in) |
| Weight |
| 3.79 kg (8.36 lb) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
