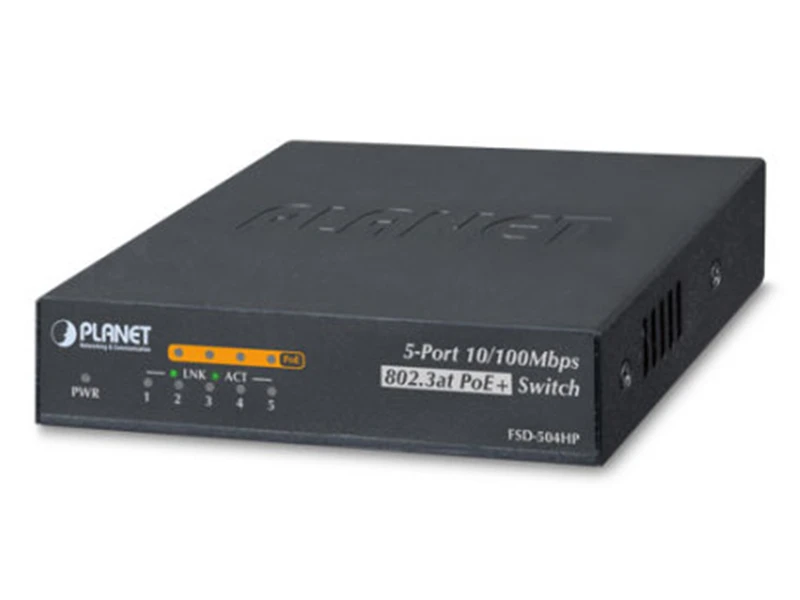

Planet PL FSD 504HP PoE Switch
Özellikler
Teknik Özellikler
| Hardware Specifications | |
| Network Connector | 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX |
| PoE Inject Port | 4 ports with 802.3at / af PoE injector function (port 2 to port 5) |
| LED Display | System: Power (Green) |
| Per PoE port:PoE (Orange, port 2 to port 5) | |
| LNK/ACT (Green, port 1 to port 5) | |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 1K MAC address table with auto learning function |
| Switch Fabric | 1Gbps |
| Switch Throughput | 0.74Mpps @64Bytes |
| Maximum Packet Size | 1536Bytes |
| Flow Control | Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex |
| Power Requirements | DC 48V, 1.5A. |
| Power Consumption | Max.62 watts / 211.5 BTU |
| Dimensions (W x D x H) | 90 x 80 x 21 mm |
| Weight | 172g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| IEEE 802.3at Power over Ethernet Plus / PSE | |
| PoE Power Supply Type | Mid-Span |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Output | Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af) |
| Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at) | |
| PoE Power Budget | 60 watts |
| Number of 802.3af PD Class 0, 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 0, 4 can be powered | 2 |
| Standard Conformance | |
| EMI Safety | FCC Class A, CE |
| Standard Compliance | IEEE 802.3:Ethernet |
| IEEE 802.3u:Fast Ethernet | |
| IEEE 802.3x:Flow Control | |
| IEEE 802.3af:Power over Ethernet | |
| IEEE 802.3at:High Power over Ethernet | |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
