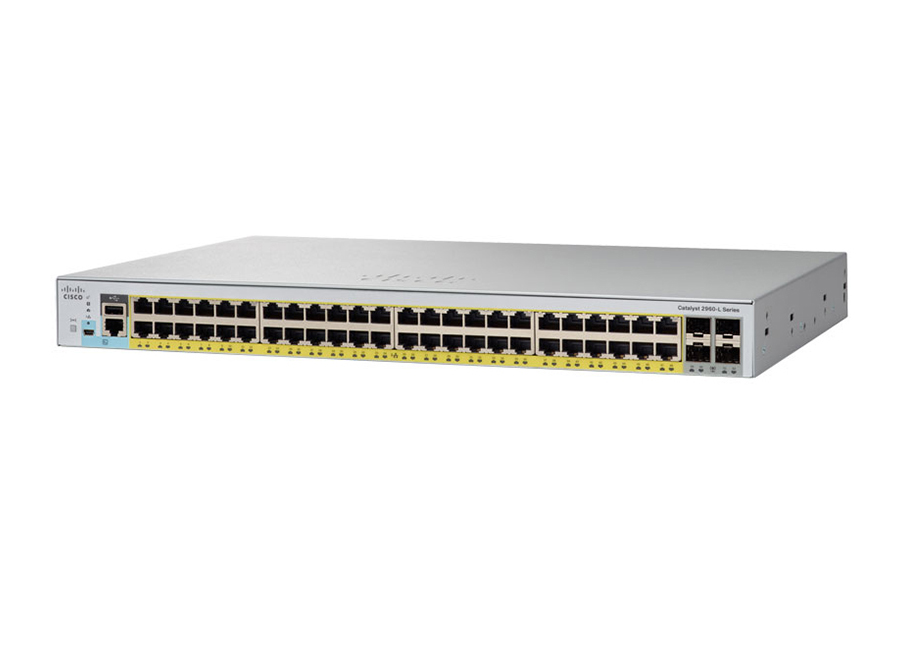

Cisco Catalyst 2960L SM 48PQ PoE Switch

Teknik Özellikler

Product Description	Cisco Catalyst 2960L-SM-48PQ - switch - 48 ports - smart - rack-mountable
Device Type	Switch - 48 ports - L3 - smart - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Performance	Forwarding bandwidth: 88 Gbps
	Switching bandwidth: 176 Gbps
	Forwarding rate: 77.38 Mpps
Capacity	Egress port queues: up to 8
	IPv4 routes (static): 16
	IPv6 routes (static): 16
	IPv6 groups (Multicast): 1024
	Active VLANs: 256
	VLAN IDs: 4094
	STP instances: 64
	SPAN sessions: 4
	Maximum transmission unit (MTU) (bytes): 9198 byte
Jumbo Frame Support	10240 bytes
Routing Protocol	RIP, IGMP, MLDv2, MLD
Remote Management Protocol	RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, NTP
Features	DHCP support, auto-negotiation, IGMP snooping, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, static routing, Class of Service (CoS), DiffServ Code Point (DSCP) support, IP source guard, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), Voice VLAN, proxy ARP, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Enhanced QoS, BPDU Guard, Rapid Reconfiguration of Spanning Tree (RSTP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Power	AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)	4.4 cm x 24 cm x 44.5 cm
Weight	3.03 kg
Manufacturer Warranty	Limited lifetime warranty
