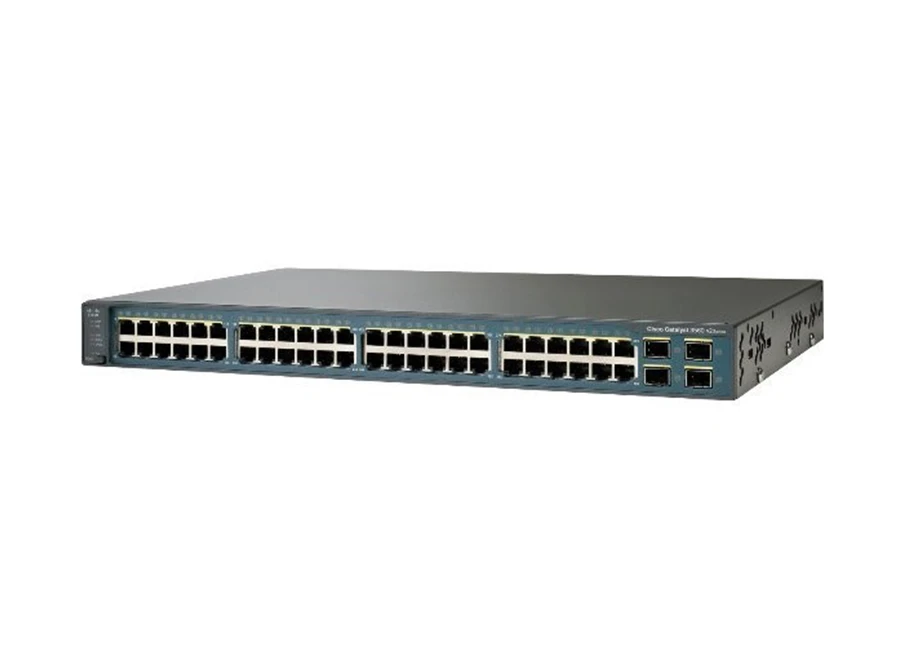

Cisco Catalyst 3560V2 48PS PoE Switch

Teknik Özellikler

Packaged Quantity	3 (specifications are for single item)
Device Type	Switch - 48 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Subtype	Fast Ethernet
Ports	48 x 10/100 + 4 x SFP
Power Over Ethernet (PoE)	PoE
MAC Address Table Size	12K entries
Routing Protocol	RIP-1, RIP-2, static IP routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory	32 MB flash
Expansion / Connectivity
Interfaces	24 x 100Base-TX RJ-45 PoE
	24 x 100Base-TX RJ-45
	1 x console RJ-45 management
	4 x SFP (mini-GBIC)
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Features	Redundant Power System (RPS) connector
Miscellaneous
MTBF	206,041 hours
Compliant Standards	GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A
Software / System Requirements
Software Included	Cisco IOS IP Base
Dimensions & Weight
Width	17.4 in
Depth	11.6 in
Height	1.7 in
Weight	11.02 lbs
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	10 - 85%
