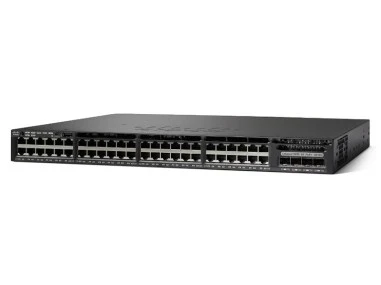

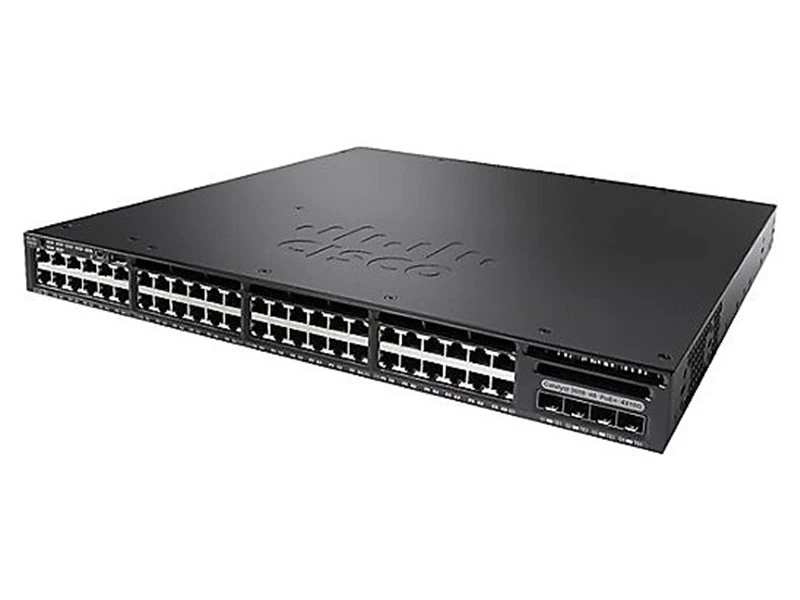

Cisco Catalyst 3650 48FQM L 10/100/1000 PoE Plus Switch
Teknik Özellikler
| Capacity |
| Type: IPv4 routes |
| Value: 24000 |
| Type: NetFlow entries |
| Value:48000 |
| Type: Virtual interfaces (VLANs) |
| Value:1000 |
| Type: Switched virtual interfaces (SVIs) |
| Dimensions & Weight |
| Depth:19.1 in |
| Height: 1.7 in |
| Weight: 17.2 lbs |
| Width: 17.5 in |
| Environmental Parameters |
| Humidity Range Operating: 5 - 96% (non-condensing) |
| Max Operating Temperature: 113 °F |
| Max Storage Temperature: 158 °F |
| Min Operating Temperature: 23 °F |
| Min Storage Temperature: -40 °F |
| Flash Memory |
| Installed Size: 2 GB |
| Header |
| Brand:Cisco |
| Compatibility: PC |
| Manufacturer: Cisco Systems |
| Model: 3650-48FQM-L |
| Packaged Quantity: 1 |
| Product Line: Cisco Catalyst |
| Interface Provided |
| Comments: PoE+ |
| Connector Type: RJ-45 |
| PoE Power: 30 W |
| Qty: 48 |
| Type: 1000Base-T |
| Connector Type: Type A |
| Qty: 1 |
| Type: USB |
| Comments: Management |
| Type: Serial (console) |
| Type: Management (Gigabit LAN) |
| Connector Type: Type B |
| Type: Management (mini-USB) |
| Comments: Uplink |
| Connector Type: SFP+ |
| Qty: 4 |
| Type: 10GBase-X |
| Miscellaneous |
| Authentication Method: Kerberos , RADIUS , Secure Shell (SSH) , TACACS+ |
| Color Category: Black |
| Compliant Standards: BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Part 15 A , GOST , ICES-003 Class A , IEC 60950-1 Second Edition , ISO 7779 , KCC , KN22 Class A , KN24 , NOM , RoHS , UL 60950-1 Second Edition , VCCI Class A |
| Height (Rack Units): 1 |
| MTBF: 383,760 hours |
| Rack Mounting Kit: Included |
| Networking |
| Advanced Switching: Layer 3 |
| Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z |
| Features: Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-uplink (auto MDI/MDI-X) , Class of Service (CoS) , DHCP snooping , DHCP support , DiffServ Code Point (DSCP) support , Dynamic ARP Inspection (DAI) , Dynamic Trunking Protocol (DTP) support , Energy Efficient Ethernet , Full duplex capability , Hot Standby Router Protocol (HSRP) support , IGMP snooping , IPv6 support , Layer 2 switching , Link Aggregation Control Protocol (LACP) , LLDP support , MAC Address Notification , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Port Aggregation Protocol (PAgP) support , Quality of Service (QoS) , RADIUS support , Rapid Per-VLAN Spanning Tree Plus (PVRST+) , Rapid Spanning Tree Protocol (RSTP) support , Remote SwitchPort Analyzer (RSPAN) , Shaped Round Robin (SRR) , Spanning Tree Protocol (STP) support , Strict Priority Queuing (SPQ) , Syslog support , Trivial File Transfer Protocol (TFTP) support , Trunking , Uni-Directional Link Detection (UDLD) , Unicast Reverse Path Forwarding (URPF) , VLAN support |
| Form Factor: Desktop , Rack-mountable |
| Jumbo Frame Support: 9198 bytes |
| MAC Address Table Size: 32000 entries |
| Manageable: Yes |
| PoE Budget: 775 W |
| Ports Qty: 48 |
| Power Over Ethernet (PoE): PoE+ |
| Remote Management Protocol:CLI , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , SSH , Telnet |
| Routing Protocol: EIGRP , OSPF , RIP-1 , RIPng , Static IP routing |
| Stackable: Stackable |
| Status Indicators: Active , PoE , Port duplex mode , Port transmission speed , Status , System |
| Subcategory: Network hubs and switches |
| Subtype: Gigabit Ethernet |
| Type: Switch |
| Performance |
| Type: Switching capacity |
| Value: 176 Gbps |
| Type: Forwarding performance |
| Value: 130.95 Mpps |
| Ports |
| Qty: 48 |
| Type: 10/100/1000 (PoE+) |
| Ports (2nd) |
| Qty: 4 |
| Type: 10 Gigabit SFP+ |
| Power Device |
| Frequency Required: 50/60 Hz |
| Hot-Plug:Hot-plug |
| Installed Qty: 1 |
| Max Supported Qty: 2 |
| Nominal Voltage: AC 120/230 V |
| Power Provided: 975 Watt |
| Power Redundancy: Optional |
| Power Redundancy Scheme: 1+1 (with optional power supply) |
| Type:Internal power supply |
| RAM |
| Installed Size: 4 GB |
| Service |
| Support Details Full Contract Period: Lifetime |
| Support Details Service Included: Replacement |
| Support Details Type: Limited warranty |
| Support Details Full Contract Period: 90 days |
| Support Details Service Included: Phone consulting |
| Support Details Type: Technical support |
| Service & Support |
| Type: Limited lifetime warranty |
| Service & Support Details |
| Response Time: Next business day |
| Slot Provided |
| Free Qty: 1 |
| Total Qty: 1 |
| Type: Stacking Module slot |
| Software |
| Type: Cisco IOS IP Base |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
Desk Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
