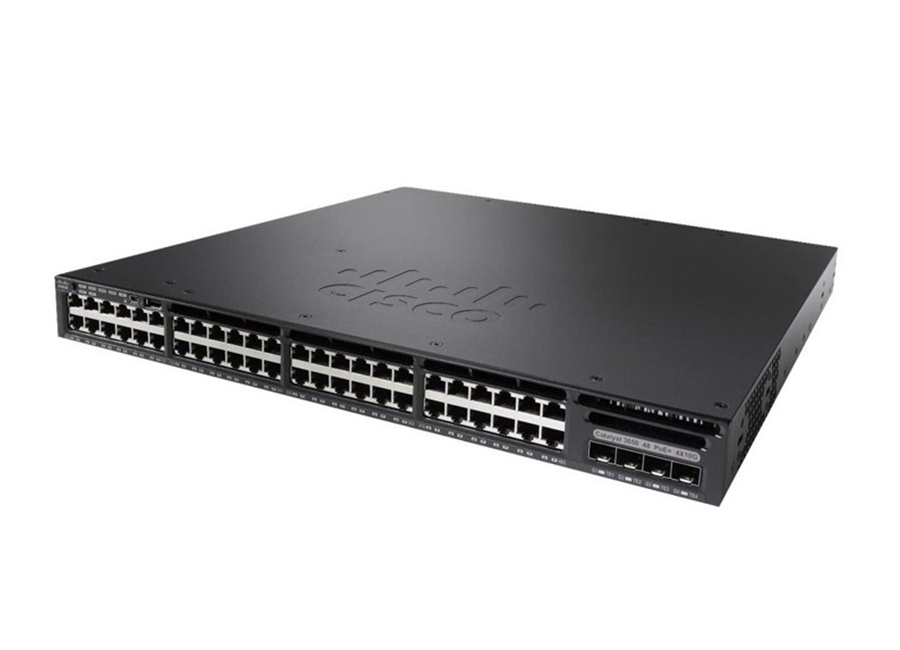

Cisco Catalyst 3650 48PS S PoE Switch
Teknik Özellikler
| Enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
| Network management Interface | · Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
| · Management console port: RJ-45-to-DB9 cable for PC connections | |
| Available PoE Power | 390W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 160Gbps |
| Forwarding Performance | 77.37Mpps |
| FNF entries | 48000 |
| Maximum VLANs IDs | 4,094 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | power redundant slot |
| Accessory & Rack Moubt Kits | · ACC-KIT-T1: Accessory kit |
| · RACK-KIT-T1: Rack mount kit | |
| · 4PT-KIT-T1:Extension rails and brackets for four-point mounting | |
| Stacking module & cable | · C3650-STACK-KIT: Stack Module |
| · STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length | |
| · STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length | |
| · STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length | |
| Power supply | PWR-C2-1025WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone (in Watts) | 99.5 (max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.625 Inches (44.8 cm) |
| Height | 1.73 Inches (4.4 cm) |
| Shipping Weight | 17.49 Kg |
| Rack Mounting Kit | optional |
| MTBF in hours | 383,76 |
| Compliant Standards | · IEEE 802.1D Spanning Tree Protoco |
| · IEEE 802.1p CoS Prioritization | |
| · IEEE 802.1Q VLAN | |
| · IEEE 802.1s | |
| · IEEE 802.1w | |
| · IEEE 802.1X | |
| · IEEE 802.1X-Rev | |
| · IEEE 802.11 | |
| · IEEE 802.1ab (LLDP) | |
| · IEEE 802.3ad | |
| · IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | |
| · IEEE 802.3 10BASE-T | |
| · IEEE 802.3u 100BASE-TX | |
| · IEEE 802.3ab 1000BASE-T | |
| · IEEE 802.3z 1000BASE-X | |
| · RMON I and II standards | |
| · SNMP v1, v2c, and v3 | |
| System software / license | |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software license | · C3650-48-S-E: IP Base to IP Services RTU paper license |
| · L-C3650-48-S-E: IP Base to IP Services RTU electronic license | |
| Access Point Licenses | · L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) |
| · L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
| · L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
| · LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) | |
| Features | · EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols |
| · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ | |
| · 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override | |
| · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues | |
| · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues | |
| · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping | |
| · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP | |
| · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense | |
| mode, SSM · Flexible Netflow | |
| Advanced Network security | · Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard |
| · The Unicast Reverse Path Forwarding (uRPF) | |
| · Bidirectional data support on a SPAN · User authentication | |
| · Private VLAN · Router and VLAN ACLs · complete identity and security | |
| · Multidomain authentication · MAC address notification | |
| · IGMP filtering · Cisco security VLAN ACL | |
| · Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) | |
| · Port-based ACLs · TrustSec SXP · IEEE 802.1ae | |
| · TACACS+ and RADIUS authentication · Cisco standard and extended IP security router ACLs | |
| · Bridge protocol data unit (BPDU) Guard | |
| · Spanning Tree Root Guard (STRG) · Wireless end-to-end security | |
| Technical Support and Services | · Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service |
| · Cisco Focused Technical Support Services | |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply | |
| Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 16,400 Feet (Up to 5000m) |
| Storage altitude | Up to 16,400 Feet (Up to 5000m) |
| Operating relative humidity | 5% to 96% noncondensing |
| Storage relative humidity | 5% to 96% noncondensing |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF |
| Storage environment | -40ºF to 160ºF |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
