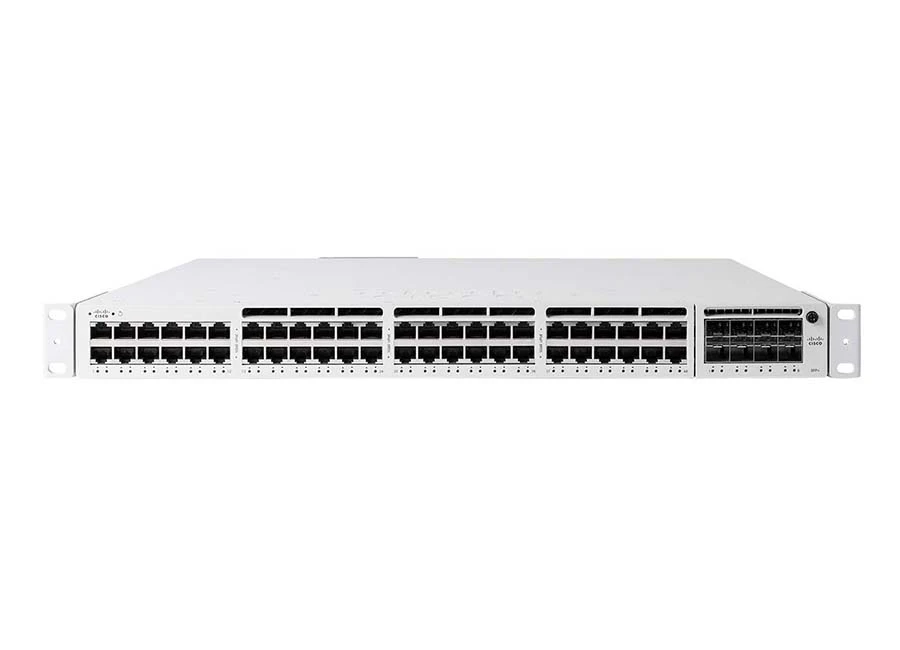

Cisco Meraki MS390 48P HW PoE Switch
Teknik Özellikler
| Dimensions & Weight |
| Depth :17.7 in |
| Height :1.7 in |
| Weight :16.73 lbs |
| Width :17.5 in |
| Environmental Parameters |
| Humidity Range Operating :5 – 95% |
| Max Operating Temperature :113 °F |
| Min Operating Temperature :32 °F |
| Header |
| Brand :Cisco Meraki |
| Manufacturer :CISCO DS HARDWARE DIRECT |
| Model :MS390-48P |
| Packaged Quantity :1 |
| Product Line :Cisco Meraki Cloud Managed |
| Interface Provided |
| Comments :PoE |
| Connector Type :RJ-45 |
| Qty :48 |
| Type :1000Base-T |
| Qty :1 |
| Type :Management |
| Qty :2 |
| Type :Network stack device |
| Miscellaneous |
| Authentication Method :RADIUS |
| Color Category :White |
| Compliant Standards :AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS, TCVN 7189 Class A, TCVN 7317, UL 60950-1, VCCI-CISPR 32:2016 Class A |
| Height (Rack Units) :1 |
| MTBF :305,870 hours |
| Rack Mounting Kit :Included |
| Networking |
| Advanced Switching :Layer 3 |
| Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad (LACP) |
| Features :Access Control List (ACL) support, Auto-negotiation, BPDU Guard, Broadcast Storm Control, Cisco Discovery Protocol (CDP), Cisco StackPower technology, Cloud managed, Crossover detection, DHCP relay, DHCP server, DHCP snooping, E-mail alert, Hot swappable fan, IGMP snooping, Loop Guard, MAC Access Bypass (MAB), Per-VLAN Spanning Tree (PVST), Port mirroring, Port Security, Quality of Service (QoS), Role-Based Access Control (RBAC), Root Guard, Syslog support, Uni-Directional Link Detection (UDLD) |
| Form Factor :Rack-mountable |
| MAC Address Table Size :32K entries |
| Manageable :Yes |
| Max Units In A Stack :8 |
| PoE Budget :437 W |
| Ports Qty :48 |
| Power Over Ethernet (PoE) :PoE |
| Remote Management Protocol :DHCP, IPv4, IPv6, RADIUS, RSTP |
| Routing Protocol :OSPF, OSPFv2, RSTP, Static IP routing, STP, VRRP |
| Stackable :Stackable |
| Subcategory :Network hubs and switches |
| Subtype :Gigabit Ethernet |
| Type :Switch |
| Performance |
| Type :Forwarding rate |
| Value :190.48 Mpps |
| Type :Stacking bandwidth |
| Value :480 Gbps |
| Type :Switching capacity |
| Value :256 Gbps |
| Ports |
| Qty :48 |
| Type :10/100/1000 (PoE) |
| Power Device |
| Frequency Required :50 – 60 Hz |
| Hot-Plug :Hot-plug |
| Installed Qty :1 |
| Max Supported Qty :2 |
| Nominal Voltage :AC 120/230 V |
| Power Consumption Operational :555 Watt |
| Power Consumption Stand by :92.6 Watt |
| Power Provided :715 Watt |
| Power Redundancy :Optional |
| Power Redundancy Scheme :1+1 (with optional power supply) |
| Type :Internal power supply |
| Slot Provided |
| Free Qty :1 |
| Total Qty :1 |
| Type :Expansion slot |
Cisco Meraki MS390 48P HW PoE Switch Pdf Dosyası239.59 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
