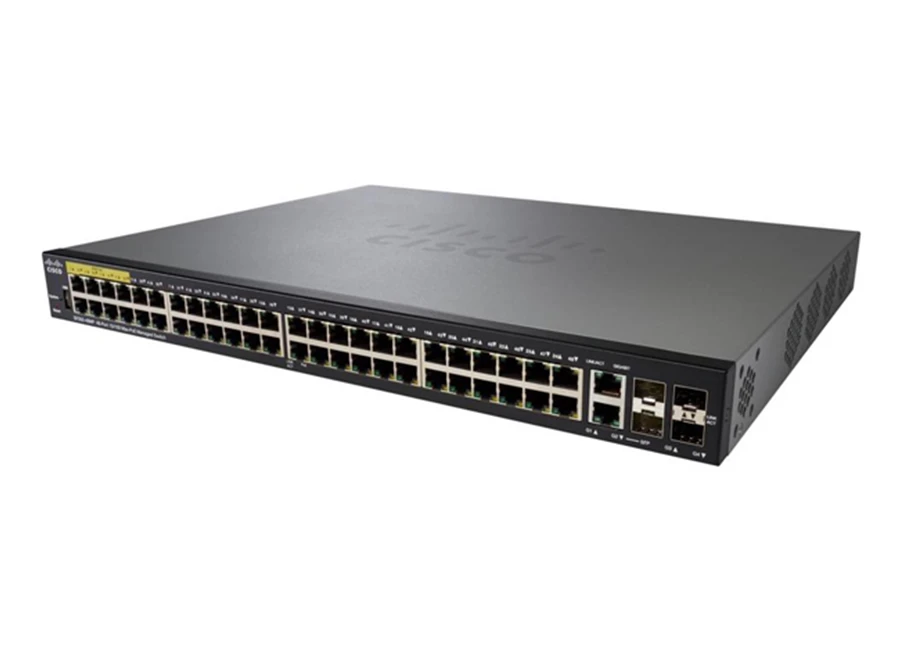

Cisco SF350 48MP PoE Switch

Teknik Özellikler

Overview (SF350-48MP)
Product Name	SF350-48MP
General
Product ID	SF350-48MP-K9
Device type	Switch – 100 M – 48 ports
Enclosure type	Rack-mountable – 1U
Ports	48 x 10/100 4 x Gigabit SFP (2 combo)
Power over Ethernet (PoE)	PoE (48 ports 740 W)
Performance	Switching capacity : 17.6 Gbps
Performance	Forwarding performance (64-byte packet size) : 13.10 Mpps
MAC address table size	16K entries
Capacity	4096 active VLANs
Jumbo frame	Yes
Remote management protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features	Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, syslog support,
	DoS attack prevention, port mirroring, DiffServ support, weighted round-robin (WRR) queuing,
	broadcast storm control, IPv6 support, multicast storm control, unicast storm control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support,
	Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS),
	jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p,
Compliant standards	IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az
RAM	512 MB
Flash memory	256 MB flash
Status indicators	System, Link/Speed per port, PoE
Expansion and Connectivity
Interfaces	48 x 10Base-T/100Base-TX – RJ-45 (48 x PoE )
	2 x combo SFP slot RJ-45
	2 x SFP slot
	1x USB port – file management
	1 x RJ-45 console – management
Power
Power device	Power supply – internal
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Width	17.3 in
Depth	13.78 in
Height	1.5 in
Weight	12.37 lbs
Mounting kit	Included
MTBF	191,951 hours
Compliant standards	UL 60950, FCC Part 15 A, CSA 22.4
Manufacturer Warranty
Service and support	Limited lifetime warranty
Service and support details	Limited warranty – replacement – lifetime – response time: next business day
	Technical support – web support – 1 year
	Technical support – phone consulting – 1 year
Environmental Parameters
Min operating temperature	32 -F
Max operating temperature	122 -F
Humidity range operating	10 – 90% (non-condensing)
Min storage temperature	-4 -F
Max storage temperature	158 -F
Humidity range storage	10 – 90% (non-condensing)
