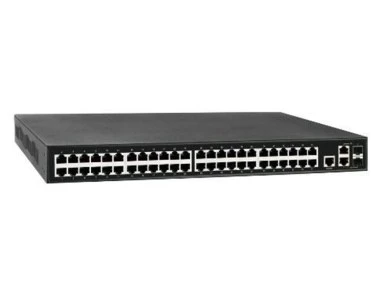

D-Link DGS 1210 52MP ME 10/100/1000 PoE Switch
Teknik Özellikler
| Genel Özellikler: |
| Interface |
| Size |
| Width for 19 "standard rack, 1U height |
| Interface |
| • 48-port 10/100BASE-TX PoE |
| • 4-port 100/1000 SFP |
| The console port |
| RJ-45 |
| Performance |
| • Switch fabric: 56 Gbit / s |
| • The speed forwarding 64-byte packets: 41.77 Mpps |
| • Size of the MAC Address Table: 16K |
| • SDRAM for CPU: 128 MB |
| • Packet Buffer: 1.5 MB |
| • Flash-Memory: 32 MB |
| • Jumbo-frame: 9216 bytes |
| Software |
| Layer 2 Features |
| • MAC Address Table: 16K |
| • Flow control: |
| - 802.3x Flow Control |
| - HOL blocking prevention |
| • Jumbo-size frames: 9216 bytes |
| • Spanning Tree: |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP |
| - Filtering BDPU |
| - Root Restriction |
| • The Loopback Detection |
| • Aggregation: |
| - Compatible with 802.3ad |
| - Max. number of groups - 8, 8 ports per group |
| • Port mirroring: |
| - Support group 1 mirroring |
| - Modes: One-to-One, Many-to-One, Flow-based (ACL) |
| Multicast Layer 2 |
| • IGMP Snooping: |
| - IGMP v1/v2/v3 Snooping |
| - Support for 256 groups |
| - IGMP Snooping Fast Leave host-based |
| • IGMP Autentiifkatsiya |
| • Limit multicast to IP-addresses |
| • MLD Snooping: |
| - MLD v1/v2 Snooping |
| - Support for 256 groups |
| - MLD Snooping Fast Leave host-based |
| VLAN |
| • 802.1Q Tagged VLAN |
| • Group VLAN: |
| - Max. 4K VLAN |
| • VLAN port-based |
| • GVRP: |
| - Max. 255 Dynamic |
| VLAN |
| • VLAN Trunking |
| • ISM VLAN |
| • Double VLAN (Q-in-Q) |
| - Q-in-Q Port-Based |
| Quality of service (QoS) |
| • Bandwidth Management: |
| - Port-based (Ingress / Egress, with steps down to 64 kbit / s) |
| • 8 queues per port |
| • Processing of queues: |
| - Strict Priority |
| - Weighted Round Robin (WRR) |
| • CoS based on: |
| - Switch Port |
| - 802.1p |
| - VLAN ID |
| - The MAC address |
| - IP-address |
| - DSCP |
| - The type of protocol |
| - TCP / UDP-port |
| - High traffic |
| • Support for the following streams: |
| - Set the 802.1p priority tags |
| - Add a tag TOS / DSCP |
| - Bandwidth Management |
| Access Control Lists (ACL) |
| • Up to 256 Access Rules |
| • ACL based on: |
| - Switch Port |
| - 802.1p Priority |
| - VLAN ID |
| - The MAC address |
| - Ether Type |
| - IPv4-address |
| - DSCP |
| - The type of protocol |
| - Non TCP / UDP port |
| - The contents of the package, the user-defined |
| • Statistics ACL |
| • Filtering CPU interface |
| Safety |
| • SSH v2 |
| • SSL v3 |
| • Port Security |
| Up to 64 MAC addresses per port |
| • Protection from a broadcast / multicast / unicast storm |
| • Traffic Segmentation |
| • IP-MAC-Port Binding (IMPB): |
| - Checking the ARP packets |
| - Check the IP packet |
| - DHCP Snooping |
| • D-Link Safeguard Engine |
| • DHCP Server Screening |
| • Filtering DHCP-client |
| • Prevent ARP Spoofing |
| • Prevention BPDU attacks |
| • Prevent DoS attacks |
| AAA |
| • 802.1X: |
| - Access control based on port |
| - Based Access Control Host |
| • Guest VLAN |
| • Local / RADIUS / |
| TACACS + servers |
| • Record keeping RADIUS |
| • 4 levels of user account |
| OAM |
| • Cable Diagnostics |
| • 802.3ah D-link Unidirectional Link Detection (DULD) 2 |
| Management |
| • Web-interface |
| • Command Line Interface (CLI) |
| • Telnet-server/klient |
| • TFTP-client |
| • SNMP v1/v2c/v3 |
| • SNMP Traps |
| • The system log |
| • RMON v1: |
| - Support for groups 1, 2, 3, 9 |
| • RMON v2: |
| - Support Group |
| ProbeConfig |
| • LLDP |
| • BootP / DHCP-Client |
| • DHCP automatically |
| • DHCP Relay |
| • DHCP Relay Option 12 |
| • DHCP Relay Option 82 |
| • Adding a tag PPPoE Circuit-ID |
| • Dual Configurations |
| • SNTP |
| • CPU Monitoring |
| • Encrypt passwords |
| MIB |
| • RFC RFC1065, 1066, 1155, 1156, 2578 MIB Structure |
| • RFC 1212 Concise MIB |
| Definitions |
| • RFC1213 MIB II |
| 1215 • RFC MIB Traps |
| Convention |
| • RFC1493 Bridge MIB |
| • RFC1157, 2571-2576 SNMP MIB |
| • RFC1907 SNMPv2 MIB |
| • RFC1757, 2819 RMON MIB |
| • RFC2021 RMONv2 MIB |
| • RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB |
| RFC |
| • RFC2674 802.1p MIB |
| • RFC 2233, 2863 IF MIB |
| • RFC 2618 RADIUS Authentication Client MIB |
| • RFC2620 RADIUS Accounting Client MIB |
| • RFC 2925 Ping and Traceroute MIB |
| • Private MIB |
| Standard IETF ® |
| • RFC 768 UDP |
| • RFC 791 IP |
| • RFC 792, 2463, 4443 |
| ICMPv4 |
| • RFC 793 TCP |
| • RFC 826 ARP |
| • RFC 2474, 3168, 3260 |
| Determination of the DS field in the IPv4 header and IPv6 |
| • RFC1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP) |
| • RFC2571, RFC2572, RFC2573, RFC2574 SNMP |
| Fiziksel Özellikler |
| Indicators |
| • Power (per device) |
| • Link / Activity / Speed |
| MTBF |
| 257.252 hours |
| Noise level |
| 50.1 dB |
| Heat release |
| 1648,9 BTU / h |
| Input voltage |
| 100-240 VAC, 50-60 Hz, max. 0,27 A |
| Power consumption |
| • PoE On: 483.1 Watts |
| • PoE Off: 48.9 Watts |
| Measurements |
| 440 x 430 x 44 mm |
| Ventilation system |
| Passive |
| Surge protection |
| All Ethernet ports support the standard IEC61000-4-May 10 / 700us integrated surge protection 6 kV |
| Operating temperature |
| -5-50 ° C |
| Storage temperature |
| -40-70 ° C |
| Operating Humidity |
| 10% ~ 90% RH |
| EMI |
| FCC class A, CE class A, VCCI, C-Tick, BSMI, CCC |
| Safety |
| CCC, CE LVD, UL/cUL |
D-Link DGS 1210 52MP ME 10/100/1000 PoE Switch Pdf Dosyası1.5 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Rack Mount
