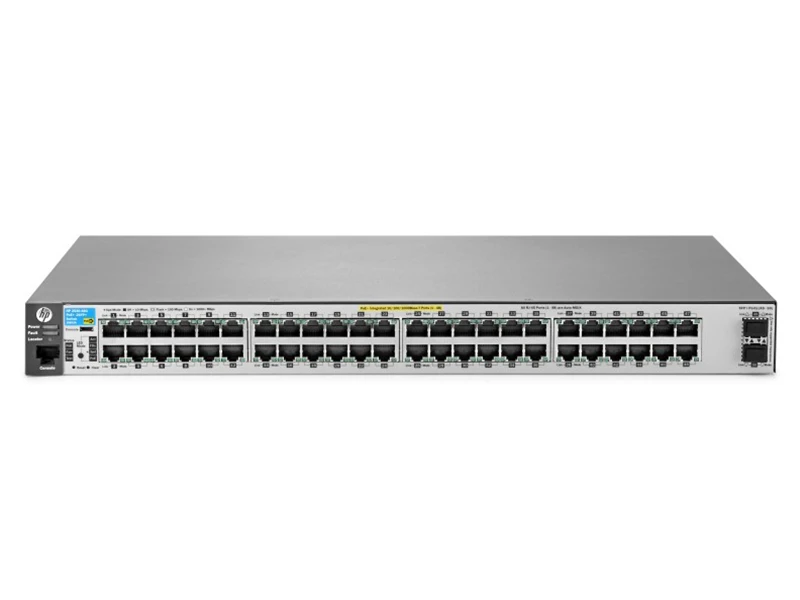

HP 2530 48G PoE Plus J9853A 10/100/1000 PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 382 |
| Jumbo Frame Support |
| 9220 bytes |
| Authentication Method |
| RADIUS, Secure Shell v.2 (SSH2), TACACS+ |
| RAM |
| 256 MB - DDR3 SDRAM |
| Flash Memory |
| 128 MB |
| MAC Address Table Size |
| 16000 entries |
| Authentication Method |
| RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Power Over Ethernet (PoE) |
| PoE+ |
| Encryption Algorithm |
| SSL |
| Jumbo Frame Support |
| 9220 bytes |
| PoE Budget |
| 382 W |
| Manufacturer |
| HP |
| Networking |
| MAC Address Table Size |
| 16000 entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Gigabit Ethernet |
| Form Factor |
| desktop, rack-mountable, wall-mountable |
| Type |
| switch |
| Features |
| ARP support, Access Control List (ACL) support, SNTP support, STP Root Guard, VLAN support, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, port mirroring, sFlow, trunking, BOOTP support, Class of Service (CoS), DHCP support, Generic |
| Attribute Registration Protocol (GARP), IPv6 support, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS) |
| Compliant Standards |
| IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Jumbo Frame Support |
| 9220 bytes |
| Ports Qty |
| 48 |
| Manageable |
| Yes |
| PoE Budget |
| 382 |
| Remote Management Protocol |
| CLI, HTTP, TFTP, Telnet, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2 |
| Power Over Ethernet (PoE) |
| PoE+ |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Power Consumption Operational |
| 439 Watt |
| Type |
| internal power supply |
| Camera |
| Installed Size |
| 128 MB |
| Interface Provided |
| Qty |
| 1, 1, 2, 48 |
| Comments |
| PoE+, management, management |
| Power |
| Power Device |
| Internal power supply |
| Processor |
| Installed Qty |
| 1 |
| Manufacturer |
| ARM |
| Clock Speed |
| 800 MHz |
| Miscellaneous |
| Encryption Algorithm |
| SSL |
| Color Category |
| silver |
| Height (Rack Units) |
| 1 m |
| RAM |
| Technology |
| DDR3 SDRAM |
| Environmental Parameters |
| Humidity Range Storage |
| 15 - 90% (non-condensing) |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 113 °F |
| Min Storage Temperature |
| -40 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 15 - 95% (non-condensing) |
| Header |
| Brand |
| HP |
| Product Line |
| HP |
| Model |
| 2530-48G-PoE+-2SFP+ |
| Packaged Quantity |
| 1 |
| Compatibility |
| PC |
| Dimensions & Weight |
| Depth |
| 12.7 in |
| Width |
| 17.4 in |
| Height |
| 1.8 in |
| Weight |
| 10.41 lbs |
| Service & Support |
| Type |
| limited lifetime warranty |
| Service & Support Details |
| Type |
| limited warranty |
| Service Included |
| advance parts replacement |
| Full Contract Period |
| lifetime |
| Ports |
| Type |
| 10/100/1000 (PoE+) |
| Qty |
| 48 |
| Performance |
| Type |
| switching capacity, throughput |
| Value |
| 101 Mpps, 136 Gbps |
| Ports (2nd) |
| Type |
| 10 Gigabit SFP+ |
| Qty |
| 2 |
| General |
| Manufacturer |
| HP |
HP 2530 48G PoE Plus J9853A 10/100/1000 PoE Switch Pdf Dosyası2.05 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Rack Mount
Wall Mount
Desk Mount
